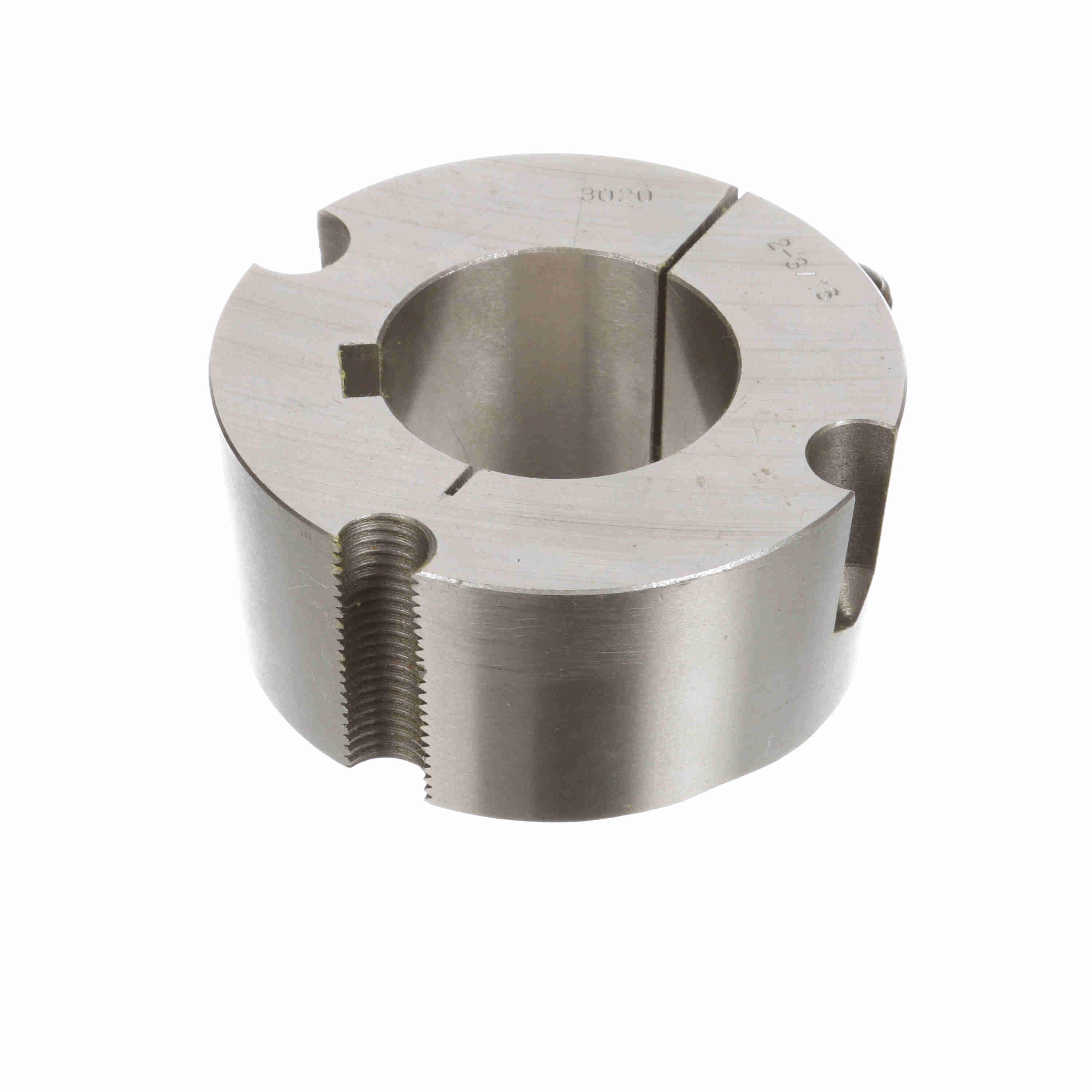

Browning® 3750254 Taper Lock Bushing, 2-3/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel
Browning® 3750254 Taper Lock Bushing, 2-3/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel
-
BrandBrowning®
-
UPC662289617609
-
Manufacturer Part Number3750254
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating24000 in-lb
-
Screw Size5/8 x 1-1/4 in
-
Number of Bolt Holes2
-
Barrel Diameter4-1/4 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter4 in
-
Bore Diameter2-3/16 in
-
Overall Length2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Mounts flush in products - No protruding flanges to interfere with the drive
-
Alternative Part Number3020X 2 3/16
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
