Browning 2-1/4"-ID 2525-STYLE TL BUSHINGS BRW 2525 X 2-1/4

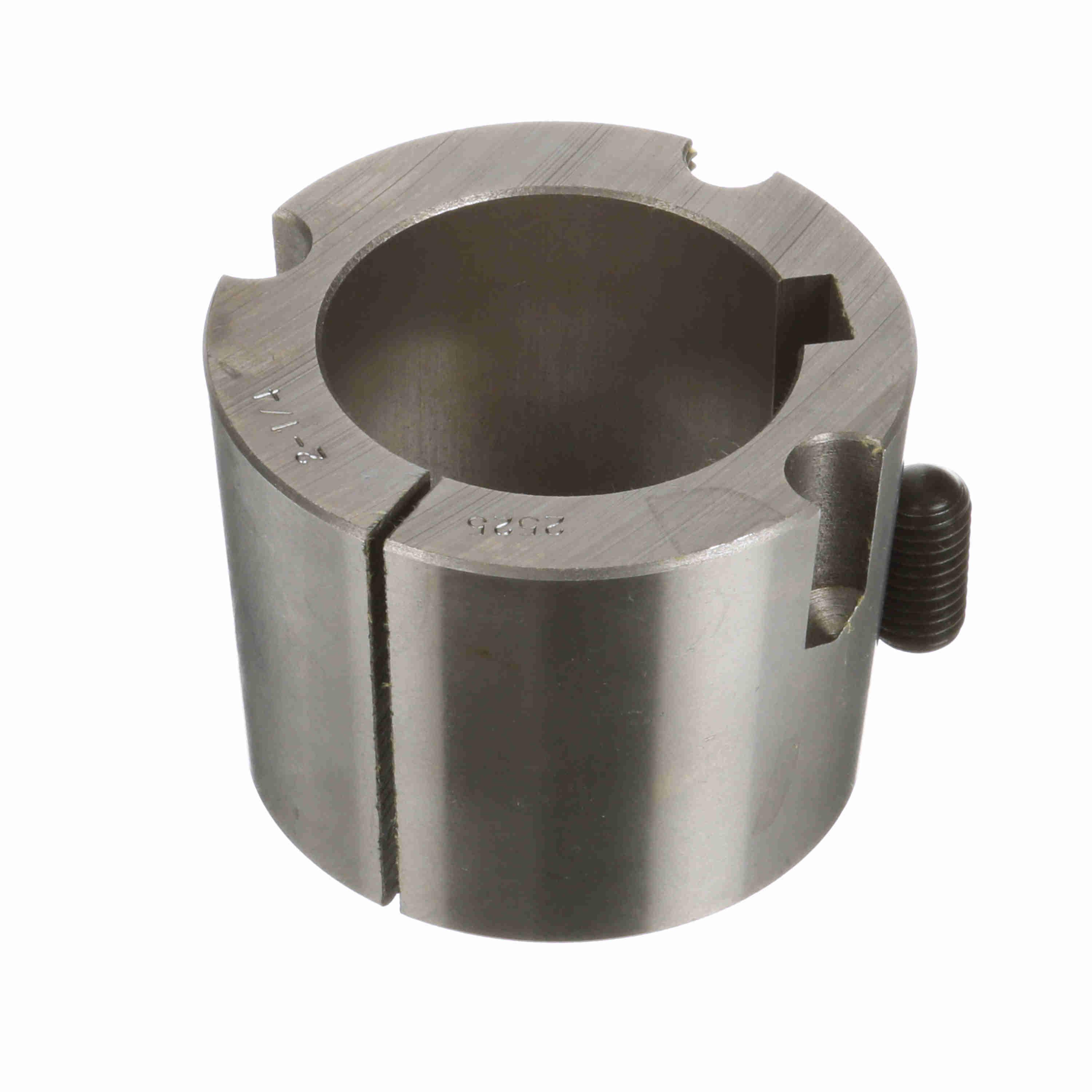

Browning® 3750007 Taper Lock Bushing, 2-1/4 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289616947
-
Manufacturer Part Number3750007
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating11300 in-lb
-
Screw Size1/2 x 1 in
-
Number of Bolt Holes2
-
Barrel Diameter3-3/8 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter3-1/4 in
-
Bore Diameter2-1/4 in
-
Overall Length2-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number2525X 2 1/4
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
-
