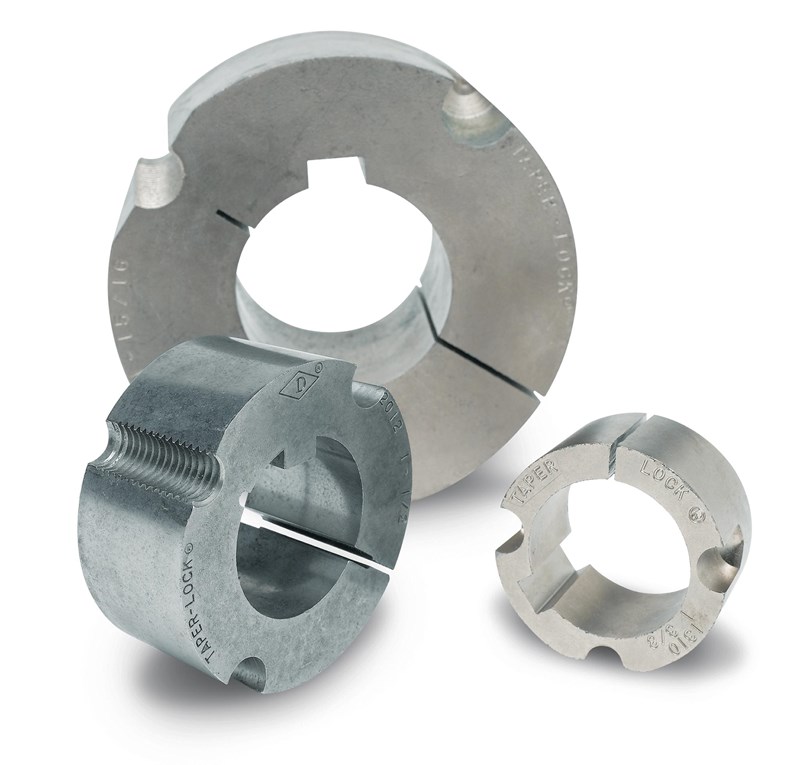

Dodge® 119404 Stock Bore Taper Lock Bushing, 1-3/8 in Dia Bore, 2 in Dia Barrel, 1 in OAL, Sintered Steel
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
-
BrandDodge®
-
UPC782475097869
-
Manufacturer Part Number119404
-
CountryUSA
-
Taper8 deg
-
MaterialSintered Steel
-
Torque Rating3850 in-lb
-
TypeStock Bore
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Hub Diameter3 in
-
Barrel Diameter2 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter1.88 in
-
Bore Diameter1-3/8 in
-
Overall Length1 in
- Size 1310 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
-
Alternative Part Number1310 X 1-3/8"
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|BSA|CEMA|MPTA|PTDA Standards
-
WarrantyLimited
-
Catalog
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
