Browning 1-3/8"-ID 1615-STYLE TL BUSHINGS BRW 1615 X 1-3/8

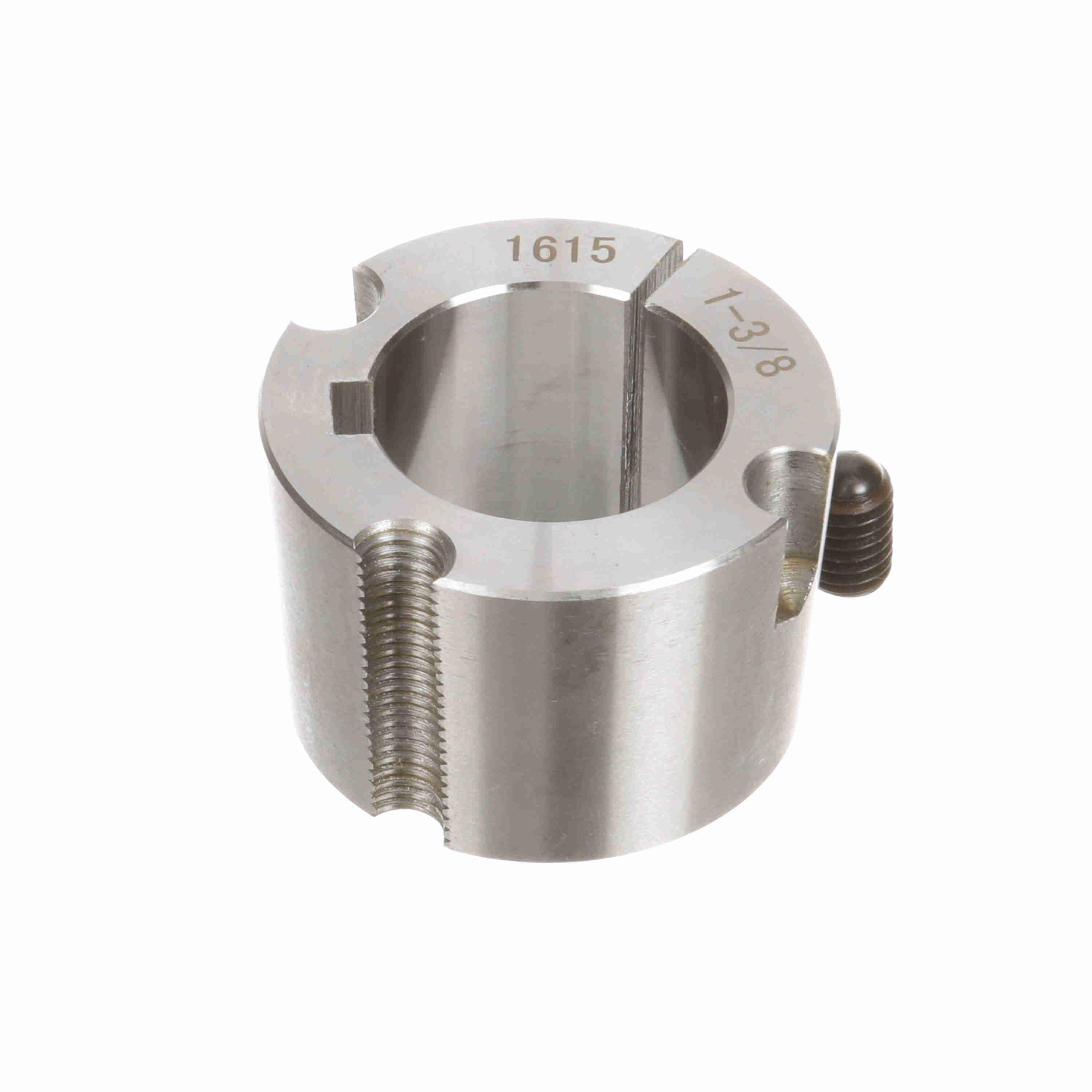

Browning® 3749165 Taper Lock Bushing, 1-3/8 in Dia Bore, 2-1/4 in Dia Barrel, 1-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289612819
-
Manufacturer Part Number3749165
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating4300 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter2-1/4 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter2-1/8 in
-
Bore Diameter1-3/8 in
-
Overall Length1-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 1615 bushing
- Mounts flush in products no protruding flanges to interfere with the drive
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number1615X 1 3/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
