Browning 13/16"-ID 1210-STYLE TL BUSHINGS BRW 1210 X 13/16

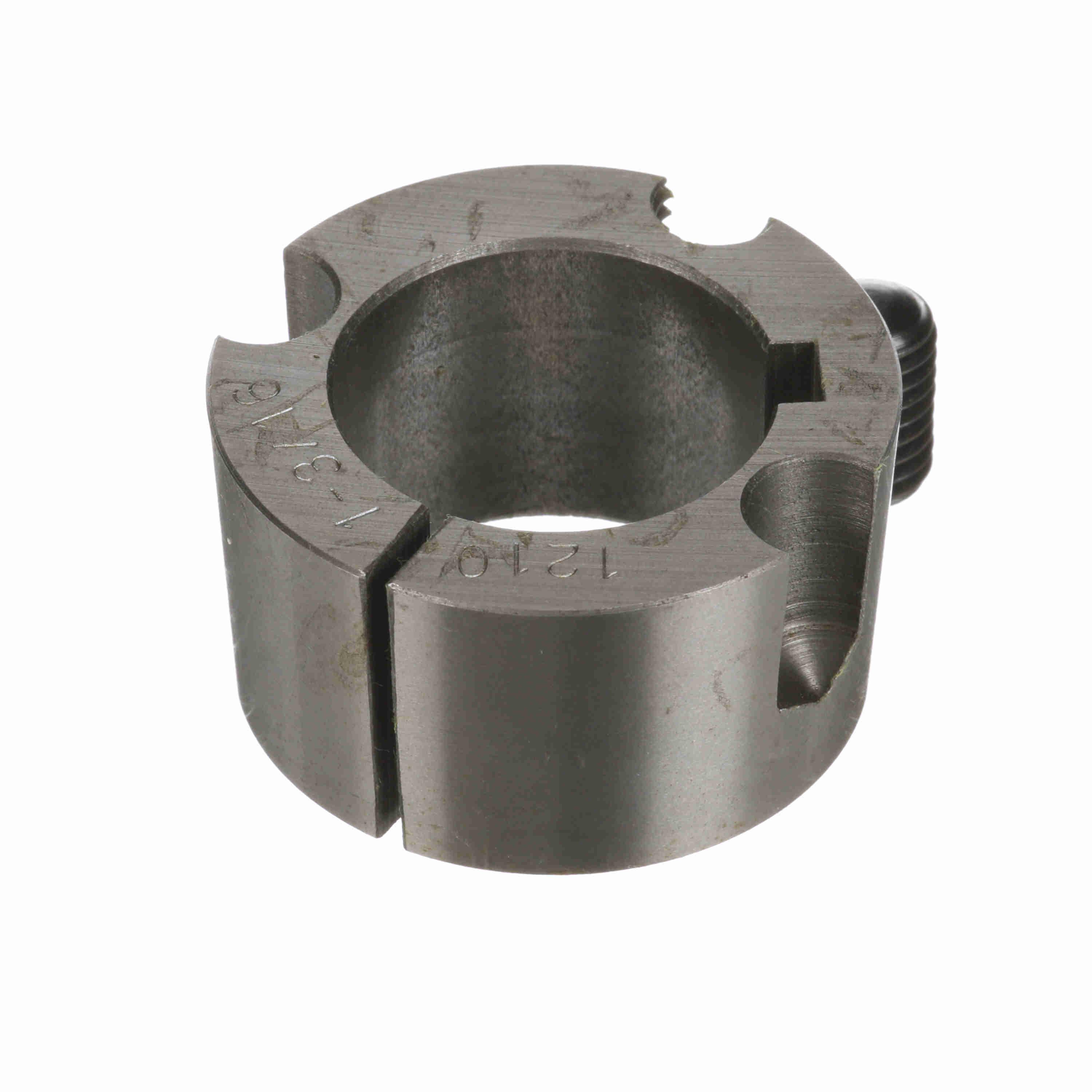

Browning® 3748688 Taper Lock Bushing, 1-3/16 in Dia Bore, 1-7/8 in Dia Barrel, 1 in OAL, Steel
-
BrandBrowning®
-
UPC662289611010
-
Manufacturer Part Number3748688
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating3600 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1-7/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter1-3/4 in
-
Bore Diameter1-3/16 in
-
Overall Length1 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1210X 1 3/16
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
Browning® 3748688 Taper Lock Bushing, 1-3/16 in Dia Bore, 1-7/8 in Dia Barrel, 1 in OAL, Steel
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.
