Browning 1-1/16"-ID 3020-STYLE TL BUSHINGS BRW 3020 X 1.1/16

0 Ratings
$83.05
Out of Stock
SKU: BRW3020X1.1/16
noimage_new

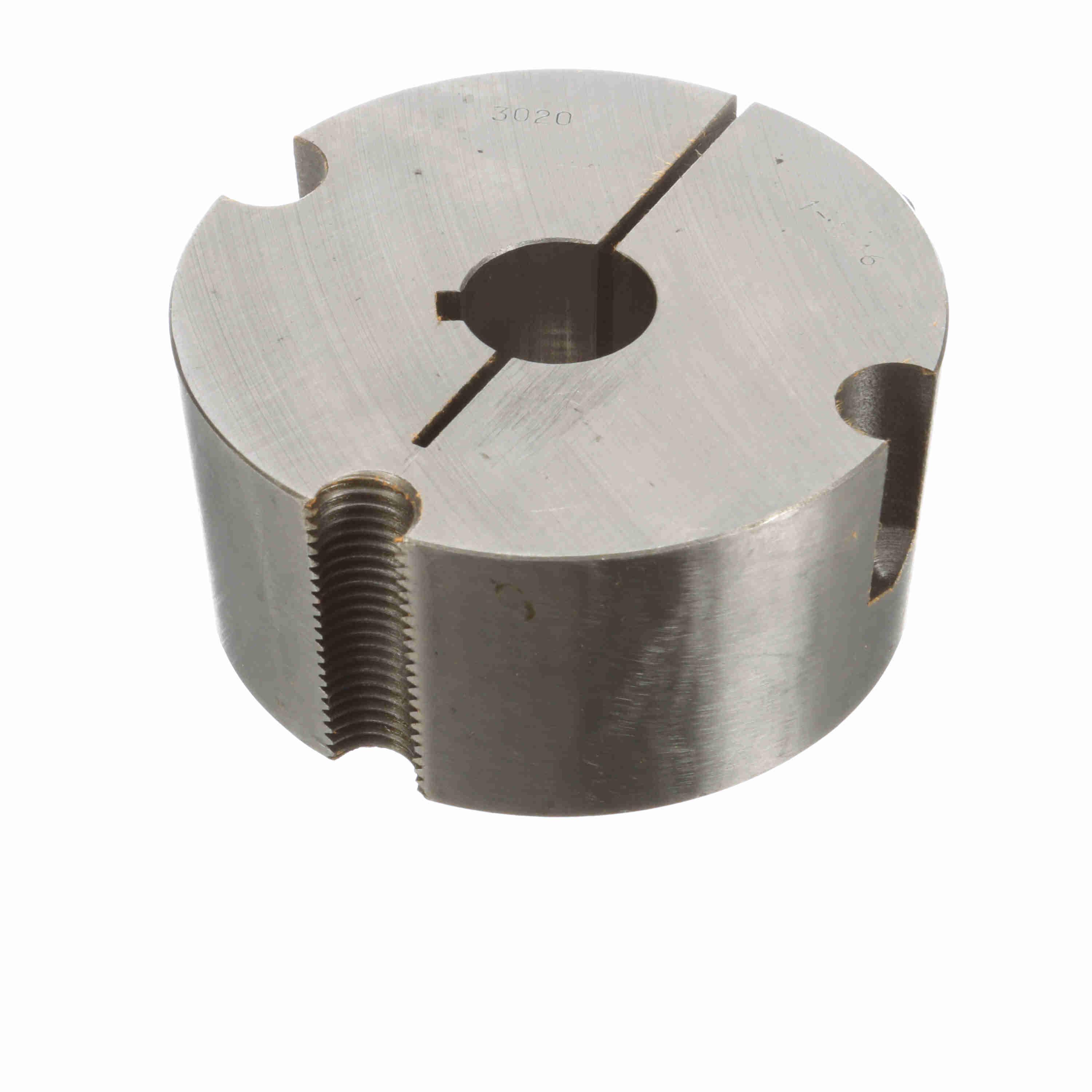

Browning® 3750072 Taper Bore Bushing, 1-1/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Browning®
  • UPC
    662289617203
  • Manufacturer Part Number
    3750072
  • Country
    USA
Specification
  • Taper
    1-1/2 in/ft
  • Torque Rating
    24000 in-lb
  • Screw Size
    5/8 in Dia x 1-1/4 in L
  • Number of Bolt Holes
    2
  • Barrel Diameter
    4-1/4 in
  • Keyway Size
    1/4 x 1/8 in
  • Bolt Circle Diameter
    4 in
  • Bore Diameter
    1-1/16 in
  • Overall Length
    2 in
  • Suitable For Use With
    Gearbelt® Sprockets, HPT® and HPT Chain™ Synchronous Belt Drives
Features
  • Mounts flush in products - No protruding flanges to interfere with the drive
Additional Information
  • Alternative Part Number
    3020X 1 1/16
  • UNSPSC
    31163205
  • Package Description
    1/PK
  • Standards/Approvals
    ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
  • Warranty
    1 Year
