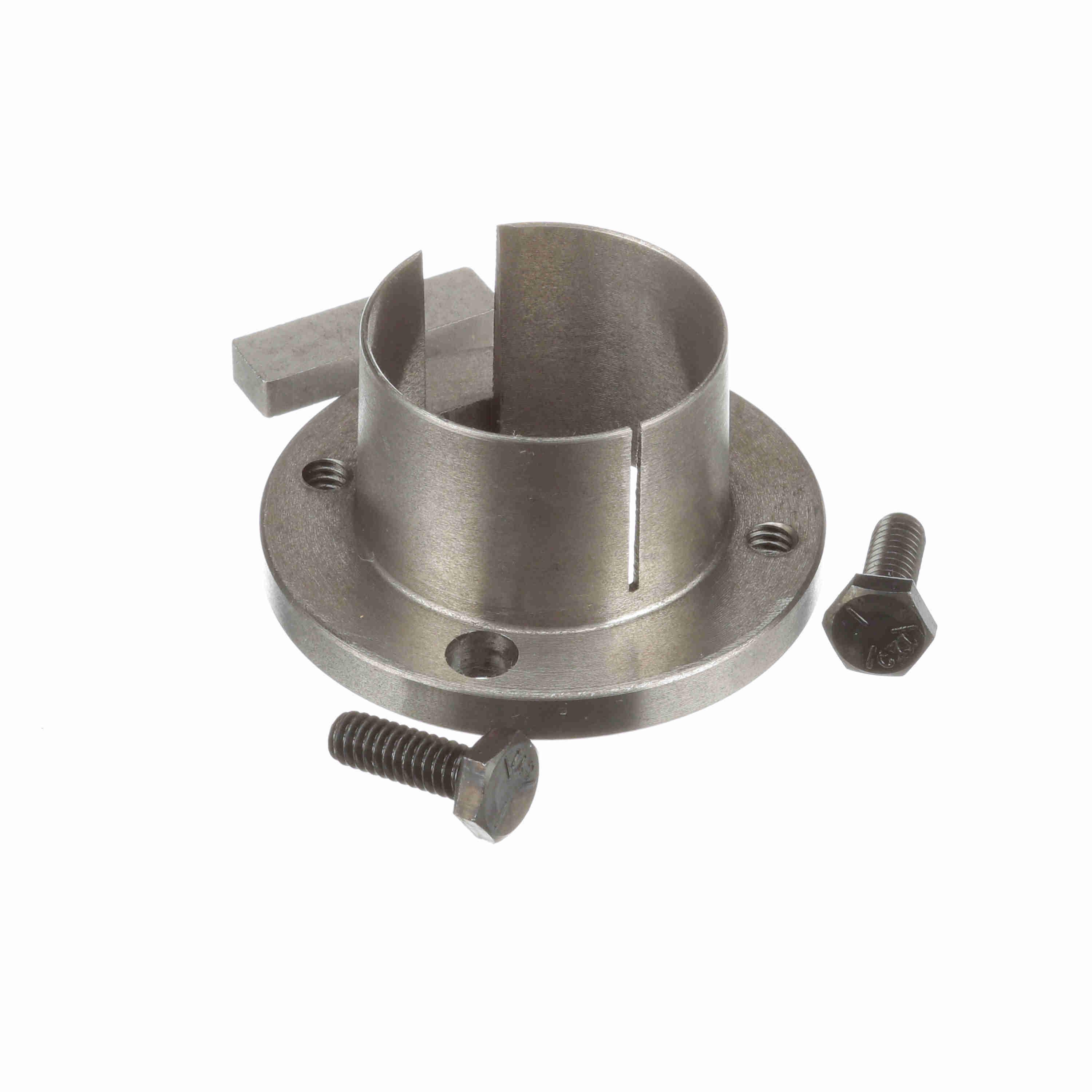

Browning® 1078427 Split Taper Bushing, 1-1/2 in Dia Bore, 1.57 in Small End/1.625 in Large End Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289129102
-
Manufacturer Part Number1078427
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialSintered Steel
-
Frame48
-
Frequency Rating60 Hz
-
Type6-Pole Continuous-Duty Split Phase
-
Mounting TypeResilient Base
-
RotationCW/CCW
-
Voltage Rating115 V AC
-
Amperage Rating4 A
-
Application TypeFan & Blower Motors
-
Service Factor1.35
-
Horsepower0.17 hp
-
Shaft Size1/2 in Dia x 1-1/2 in L
-
Dimensions10.4 in L x 5.66 in W x 5.83 in H
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass B
-
Speed1140 rpm
-
Enclosure TypeODP
-
Phase1
-
Flange Diameter2-1/2 in
-
Flange Thickness1/4 in
-
Screw Size1/4 x 3/4 in
-
Number of Bolt Holes2
-
Barrel Diameter1.57 in Small End/1.625 in Large End
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2 in
-
Bore Diameter1-1/2 in
-
Overall Length1-1/4 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- Premium efficiency promotes improved reliability
- Heavy-duty, rolled steel construction ensures motor durability
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
- Standard F1, reversible to F2 assembly
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100789789 |
| Motion Industries | 00226309 |
-
Alternative Part NumberH 1 1/2
-
UNSPSC31171605
-
Standards/ApprovalsCSA Certified|UL Listed
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
