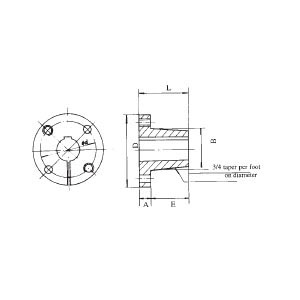

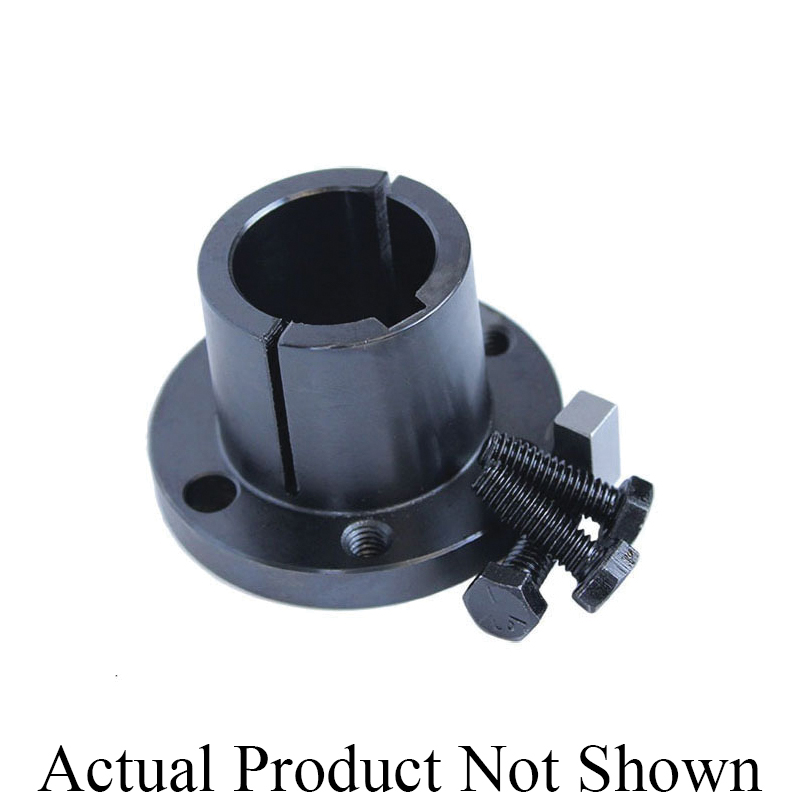

IDC Select® IDC P1-1-1/2 Double Finished Bore Split Taper Bushing, 1-1/2 in Dia Bore, 1-15/16 in Dia Barrel, 3 in Dia Flange, 1-15/16 in OAL, Nodular Graphite Cast Iron
IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.
-
BrandIDC Select®
-
UPC887412023274
-
Manufacturer Part NumberIDC P1-1-1/2
-
CountryUSA
-
MaterialNodular Graphite Cast Iron
-
Flange Diameter3 in
-
Flange Thickness13/32 in
-
Torque Rating192 in-lb
-
TypeDouble Finished Bore
-
Screw Size5/16 x 1 in
-
Barrel Diameter1-15/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-7/16 in
-
Bore Diameter1-1/2 in
-
Overall Length1-15/16 in
- Easy installation and dismount
- Keyed to both shaft and hub, external key provides positive drive
- Solid flange maintains concentric bore and reduces vibration
- Double split barrel improves concentricity
- Keystock provided with shallow key sizes
- P1 size Split Taper™ bushing
-
UNSPSC31171605
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified|ASTM A536/A536-84|SAE Standard
-
Catalog
-
Technical Bulletin
