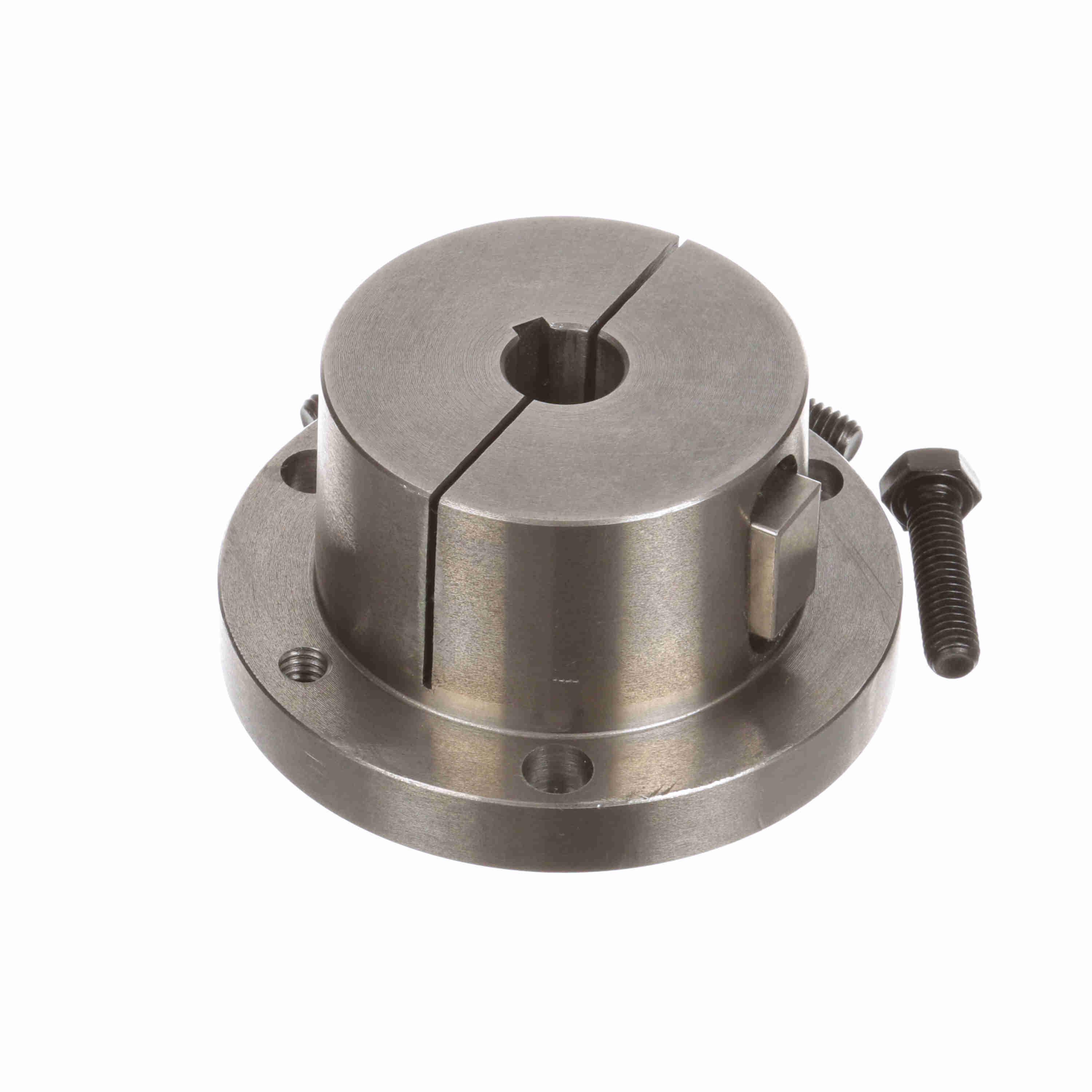

Browning® 3694726 Split Taper Bushing, 5/8 in Dia Bore, 2.5567 in Small End/2.625 in Large End Dia Barrel, 3-11/16 in Dia Flange, 1-15/16 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289038565
-
Manufacturer Part Number3694726
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3-11/16 in
-
Flange Thickness1/2 in
-
Screw Size5/16 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.5567 in Small End/2.625 in Large End
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter3-1/8 in
-
Bore Diameter5/8 in
-
Overall Length1-15/16 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Size 1/B bushing
- Solid flange and double split barrel, assures better concentricity to the shaft
- Key to key drive with keys on both the shaft and product to provide the strongest possible drive
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
-
Alternative Part NumberB 5/8
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
