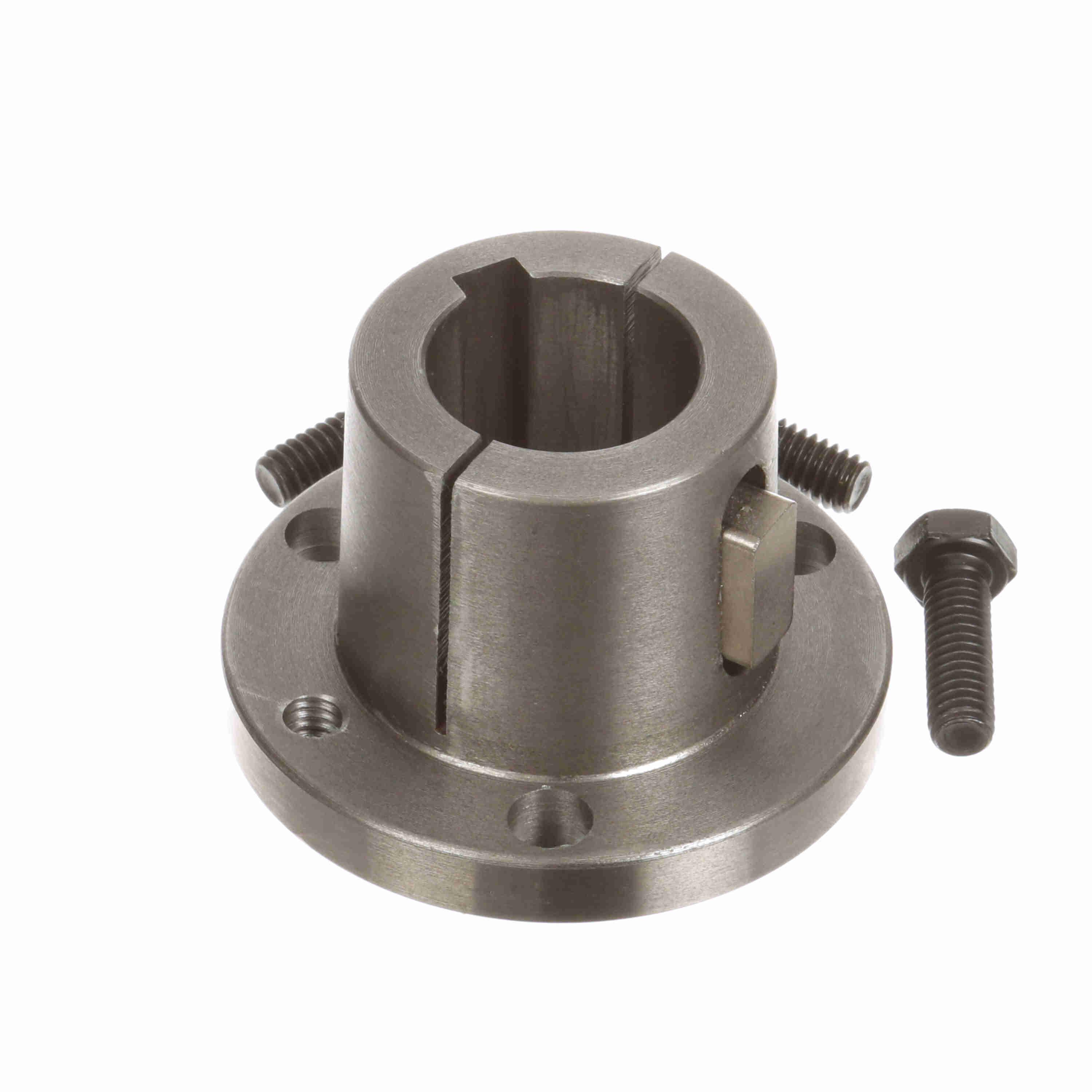

Browning® 1069863 Split Taper Bushing With Keyway, 30 mm Dia Bore, 1.8555 in Small End/1.9375 in Large End Dia Barrel, 3 in Dia Flange, 49.2125 mm OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289223244
-
Manufacturer Part Number1069863
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3 in
-
Flange Thickness13/32 in
-
Screw Size5/16 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1.8555 in Small End/1.9375 in Large End
-
Bolt Circle Diameter2-7/16 in
-
Bore Diameter30 mm
-
Overall Length49.2125 mm
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Size 1/P1 bushing
- Solid flange and double split barrel, assures better concentricity to the shaft
- Key to key drive with keys on both the shaft and product to provide the strongest possible drive
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
-
Alternative Part NumberP1 30 MM
-
UNSPSC31171605
-
Package Description1/PK
-
Warranty1 Year
-
