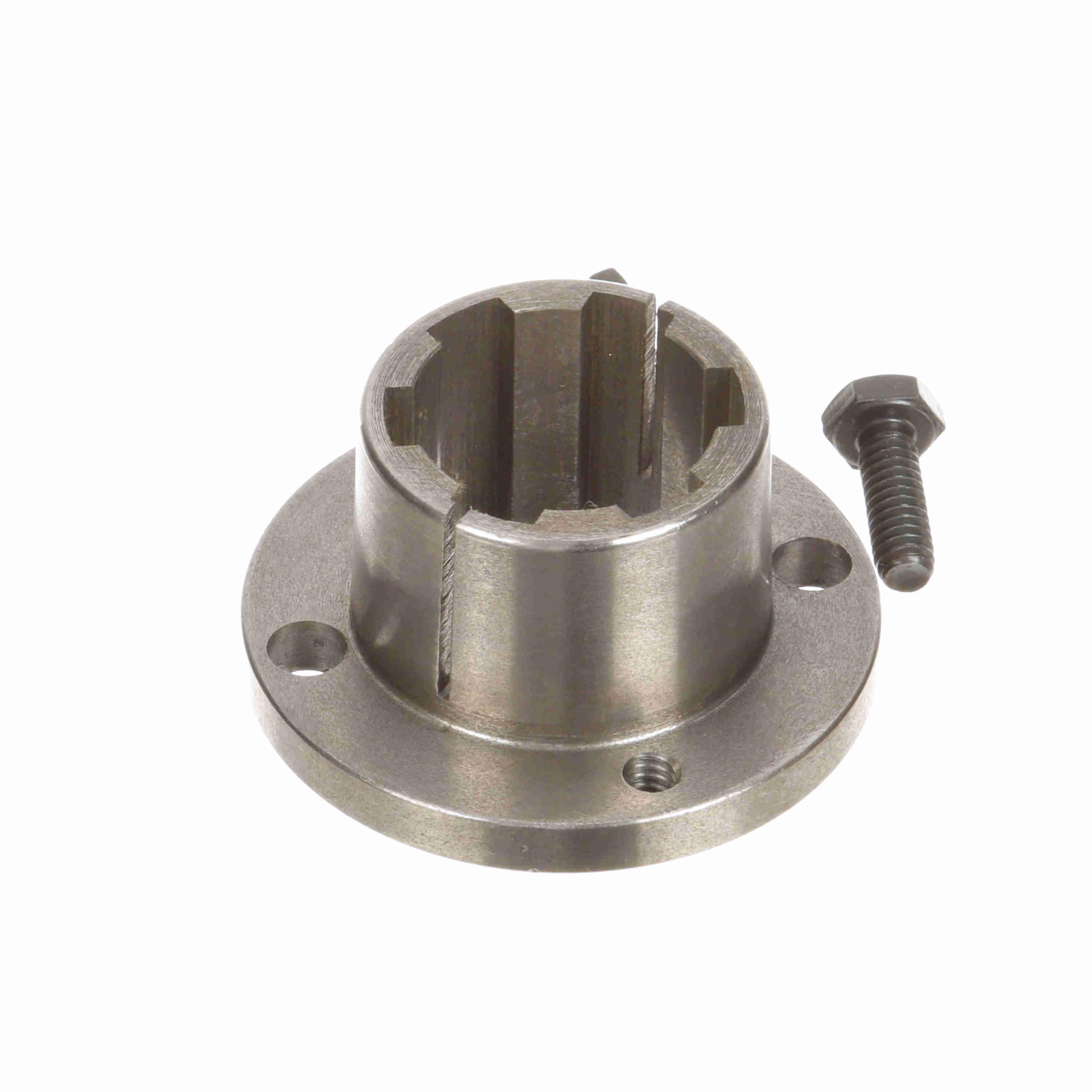

Browning® 1078633 Split Taper Bushing, 1-3/8 in Dia Bore, 1.57 in Small End/1.625 in Large End Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289233762
-
Manufacturer Part Number1078633
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter2-1/2 in
-
Flange Thickness1/4 in
-
Screw Size1/4 x 3/4 in
-
Number of Bolt Holes2
-
Barrel Diameter1.57 in Small End/1.625 in Large End
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter2 in
-
Bore Diameter1-3/8 in
-
Overall Length1-1/4 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Single adjustable drive tightener, tightener shaft must be ordered separately
- Ductile iron
-
Alternative Part NumberH 1 3/8 6 SPL B
-
UNSPSC31171605
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
