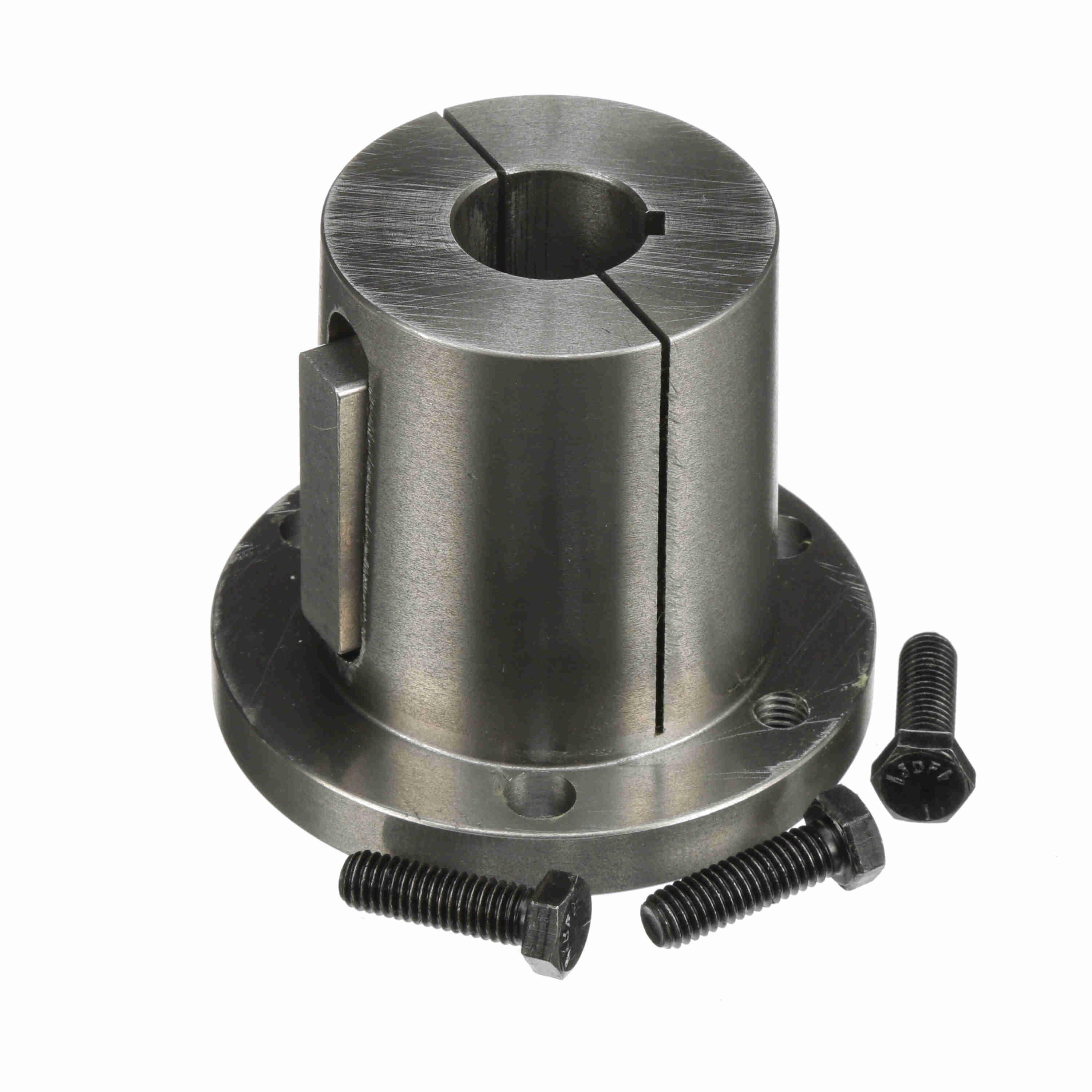

Browning® 1079193 Split Taper Bushing, 1-1/8 in Dia Bore, 2.7032 in Small End/2.875 in Large End Dia Barrel, 4-1/8 in Dia Flange, 3-1/2 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289209989
-
Manufacturer Part Number1079193
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter4-1/8 in
-
Flange Thickness17/32 in
-
Screw Size3/8 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.7032 in Small End/2.875 in Large End
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter1-1/8 in
-
Overall Length3-1/2 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Fixed flange tightener, tightener shaft must be ordered separately
- No shaft required when used with Idler Bushing
- Ductile iron
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberQ2 1 1/8
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
