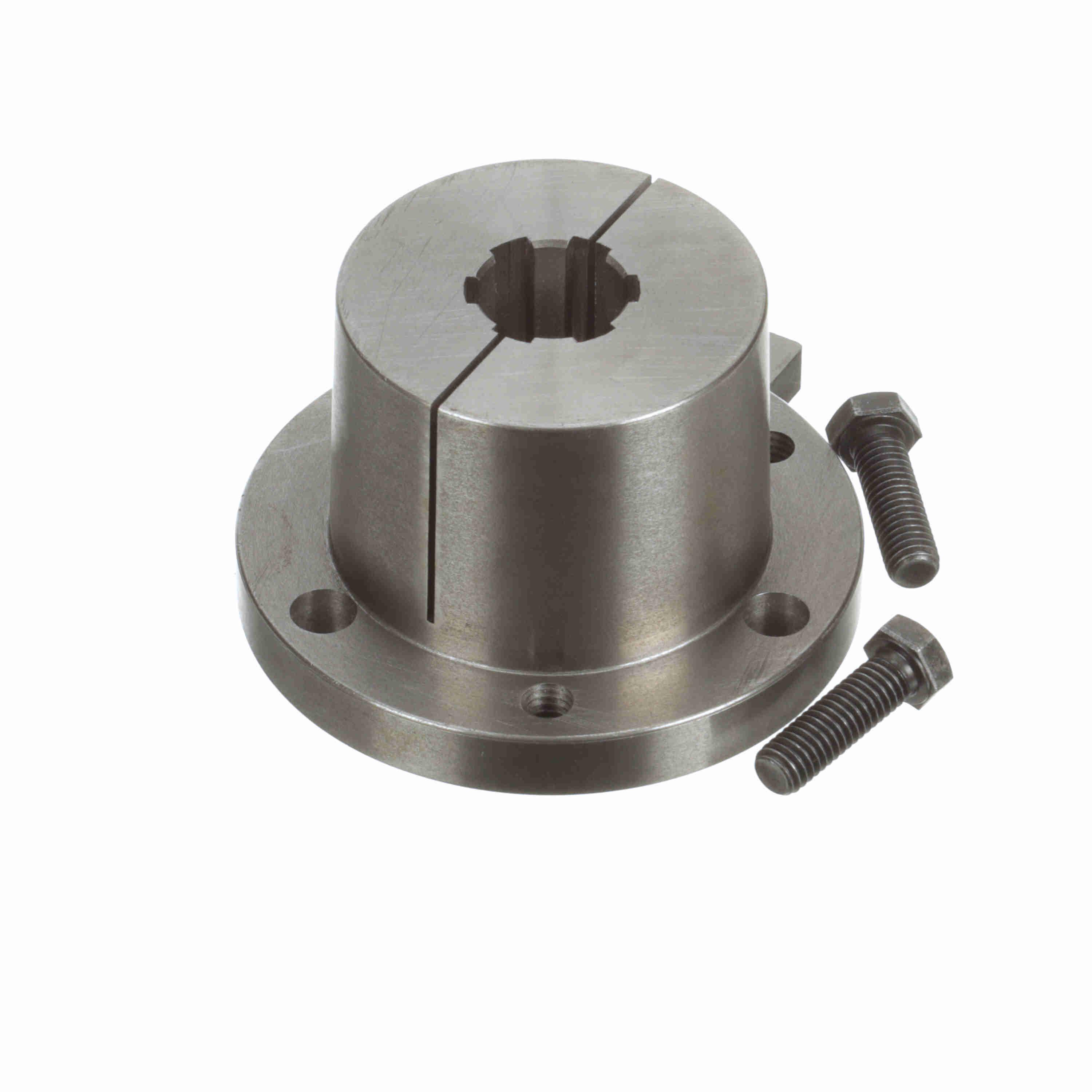

Browning 1-1/8"-ID 6-SPLINE Q-1 BUSHINGS BRW Q-1-1-1/8-6-SPLB
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289283880
-
Manufacturer Part Number1079847
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter4-1/8 in
-
Flange Thickness1/2 in
-
Screw Size3/8-16 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.7657 in Small End/2.875 in Large End
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter1-1/8 in
-
Overall Length2-1/2 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Lifetime guarantee
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Furnished complete with ball bearings, cap screws, stud bolts and nuts
- Idler bushings provide Idler componentry in the following parts - FHP, Multiple and 358 Sheaves, Gearbelt Pulleys, Spur Gears and Sprockets
-
Alternative Part NumberQ1 1 1/8 6 SPL B
-
UNSPSC31171605
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
