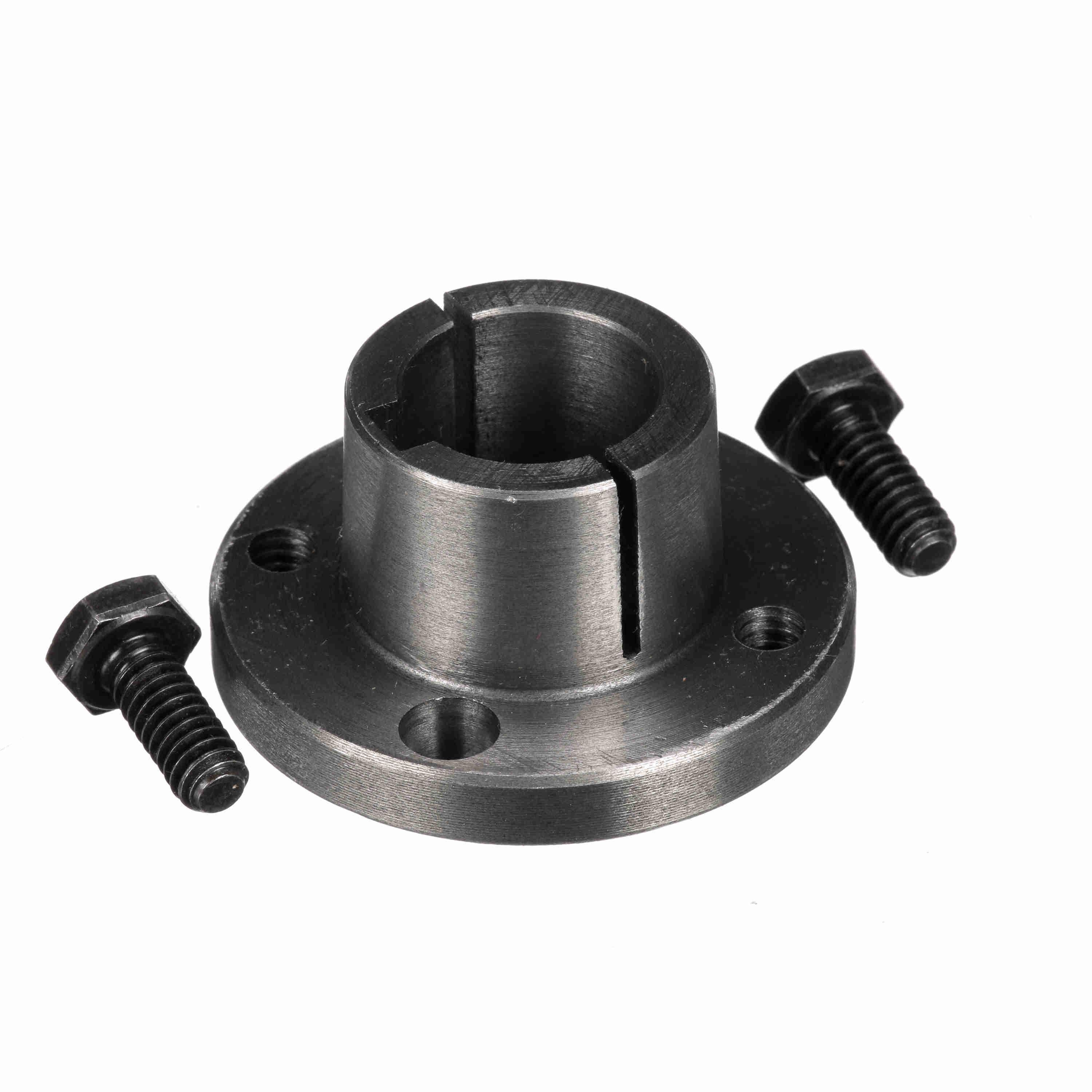

Browning® 1069251 Type G Split-Taper Bushing, 20 mm Dia Bore, 1.133 in Dia Small End/1.172 in Dia Large End Dia Barrel, 2 in Dia Flange, 1 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289411436
-
Manufacturer Part Number1069251
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter2 in
-
Flange Thickness1/4 in
-
TypeType G
-
Screw Size1/4 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1.133 in Dia Small End/1.172 in Dia Large End
-
Bolt Circle Diameter1.563 in
-
Bore Diameter20 mm
-
Overall Length1 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberG 20 MM
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
