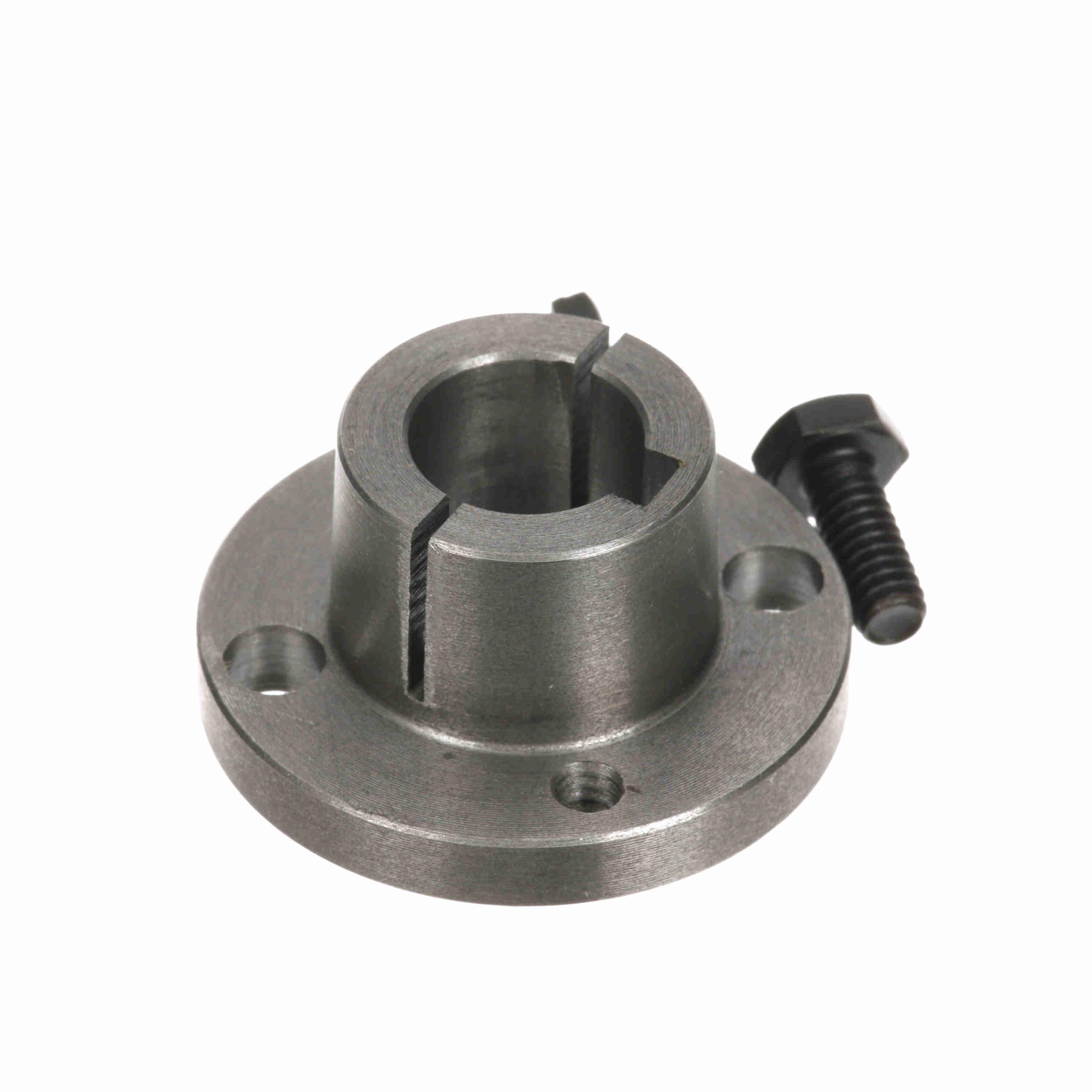

Browning® 1069236 Type G Split-Taper Bushing, 18 mm Dia Bore, 1.133 in Dia Small End/1.172 in Dia Large End Dia Barrel, 2 in Dia Flange, 1 in OAL
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289361458
-
Manufacturer Part Number1069236
-
CountryUSA
-
Flange Diameter2 in
-
Flange Thickness1/4 in
-
TypeType G
-
Screw Size1/4 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1.133 in Dia Small End/1.172 in Dia Large End
-
Bolt Circle Diameter1.563 in
-
Bore Diameter18 mm
-
Overall Length1 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in/ft taper on barrel, Self-locking taper provides the highest degree of mechanical locking product to product
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part NumberG 18 MM
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
