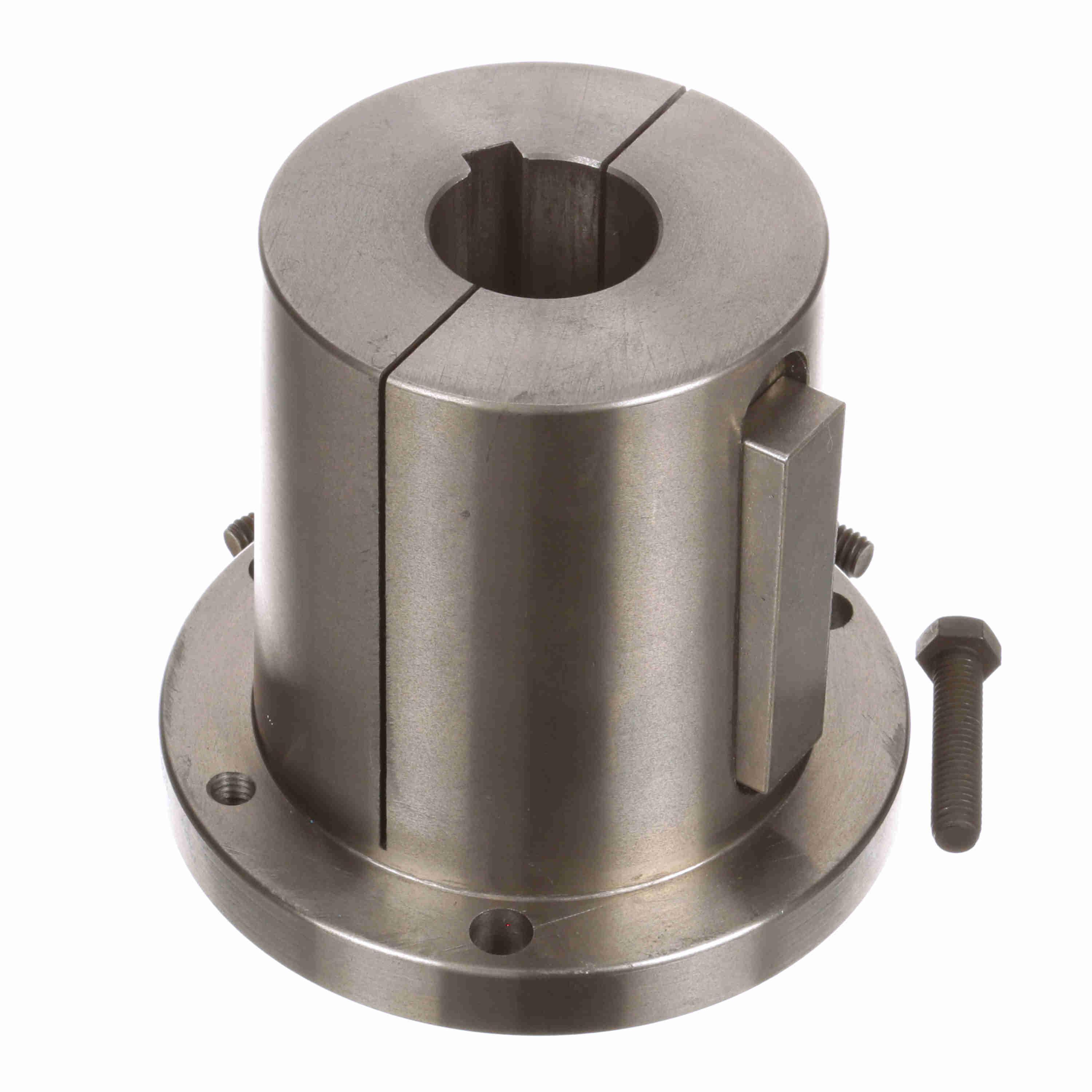

Browning® 1070507 Type R2 Split-Taper Bushing, 1-1/2 in Dia Bore, 3-3/4 in Dia Small End/4 in Dia Large End Dia Barrel, 5-3/8 in Dia Flange, 4-7/8 in OAL, Ductile Iron or Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289160853
-
Manufacturer Part Number1070507
-
CountryUSA
-
MaterialDuctile Iron or Sintered Steel
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
TypeType R2
-
Screw Size3/8 x 1-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-3/4 in Dia Small End/4 in Dia Large End
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter1-1/2 in
-
Overall Length4-7/8 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberR2 1 1/2
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
