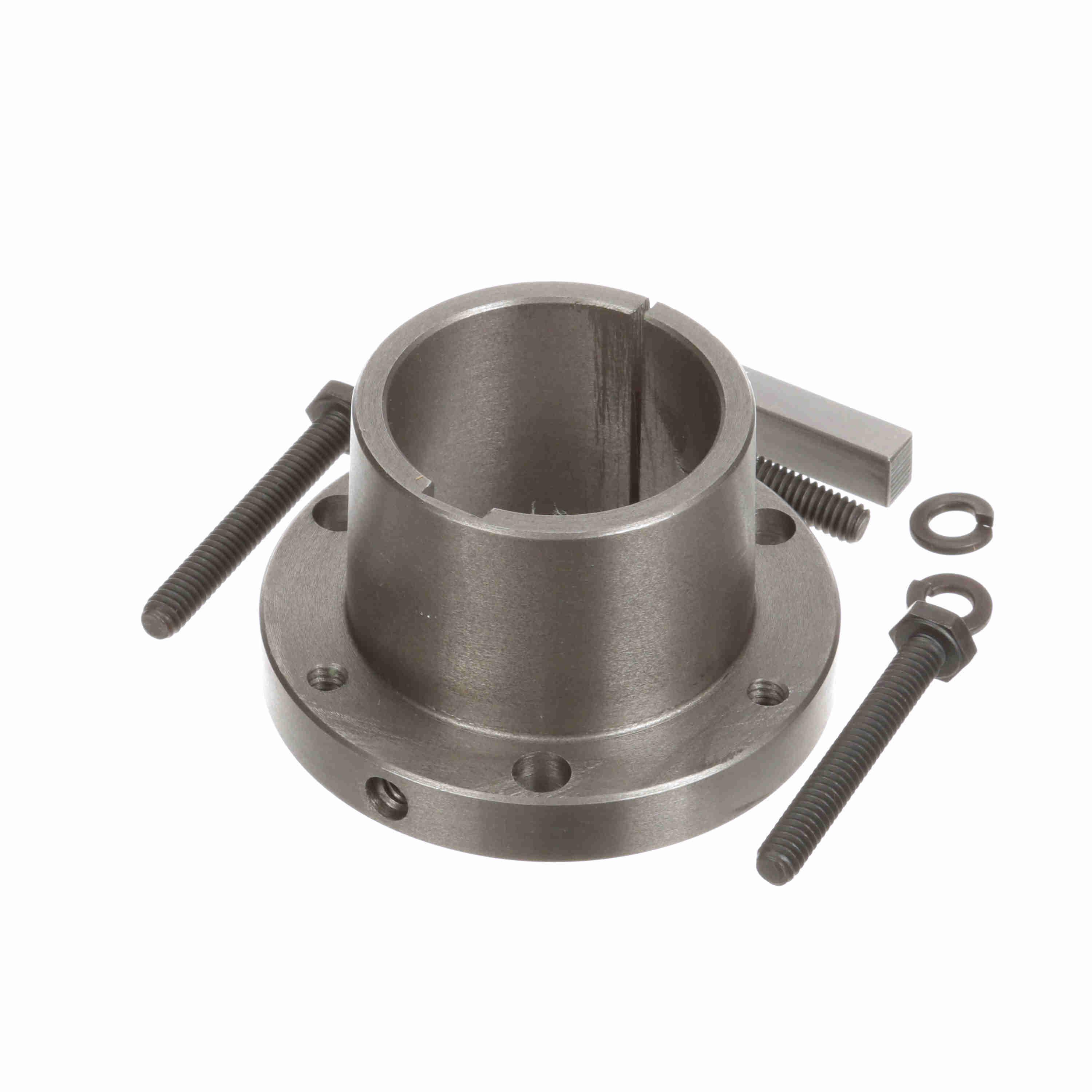

Browning® 1076785 QD Bushing, 1-3/4 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Ductile Iron
Browning® 1076785 QD Bushing, 1-3/4 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289354757
-
Manufacturer Part Number1076785
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialDuctile Iron
-
Frame324TS
-
Frequency Rating60 Hz
-
Type2-Pole Continuous Duty
-
Mounting TypeRigid Base
-
RotationReversible
-
Voltage Rating208 to 230/460 V
-
Amperage Rating56.5 A
-
Service Factor1.15
-
Horsepower40 hp
-
Shaft Size1-7/8 in Dia x 3-3/4 in L
-
Dimensions31.18 in L x 16.66 in H
-
Bearing TypeBall
-
Insulation ClassClass F
-
Special FeaturesPolyphase Severe Duty Motor
-
Speed3572 rpm
-
Enclosure TypeTEFC
-
Phase3
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
Screw Size1/4-20 x 1-7/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-3/4 in
-
Overall Length1.83 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
UNSPSC31171516
-
Standards/ApprovalsCE Certified|CSA Certified|UL Recognized
-
Alternative Part NumberSD 1 3/4
-
Package DescriptionEACH
-
Warranty1 Year
-
