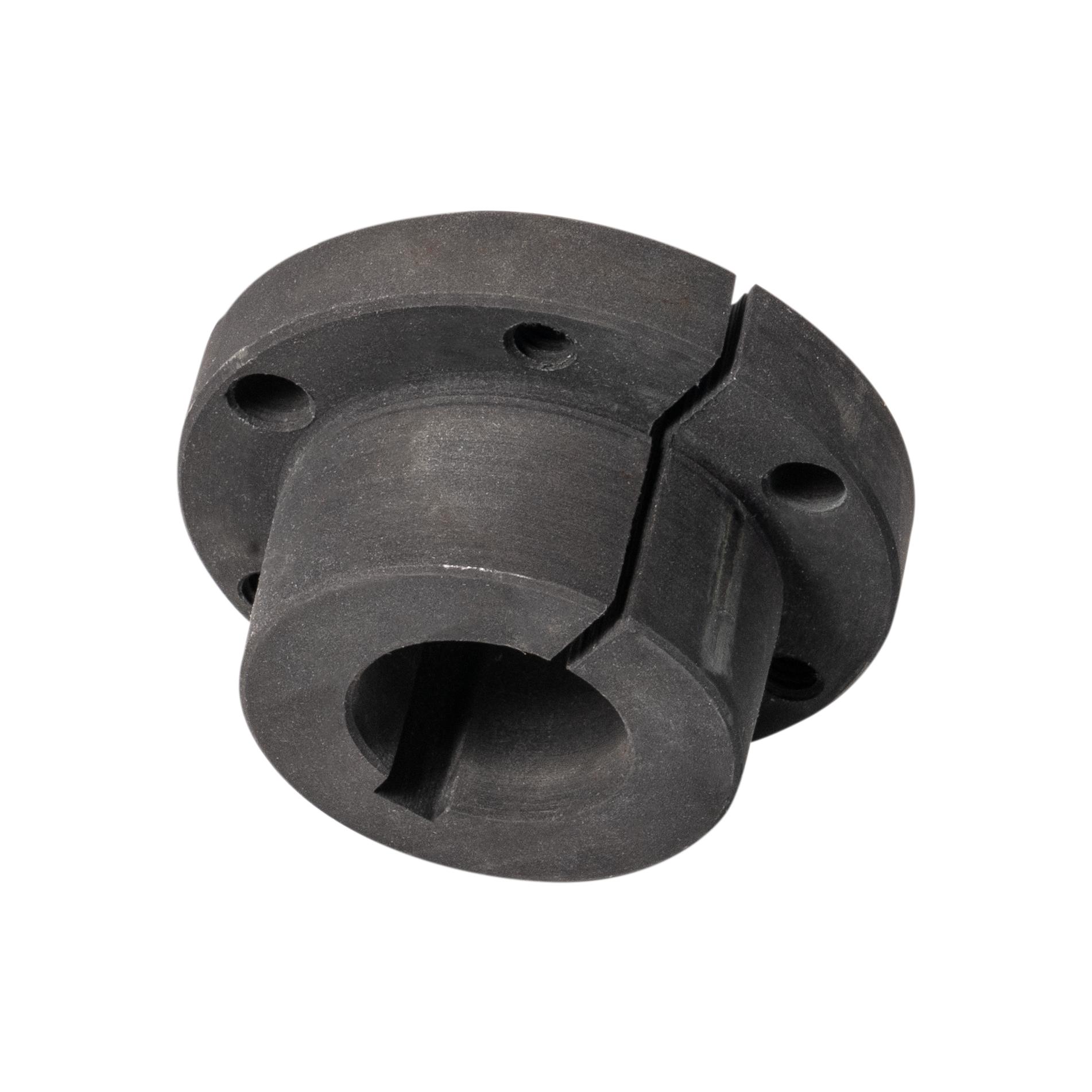

MasterDrive SH15/16 SH Series Clamp Fit QD Bushing, 1.31 in Dia Bore, 2-11/16 in Dia Barrel, 2.68 in Dia Flange, 1.3125 in OAL, Ductile Iron
-
BrandMasterDrive
-
UPC806372020383
-
Manufacturer Part NumberSH15/16
-
CountryUSA
-
FinishBlack Phosphate
-
MaterialDuctile Iron
-
Flange Diameter2.68 in
-
Flange Thickness7/16 in
-
TypeClamp Fit
-
Screw Size1/4 in
-
SeriesSH Series
-
Barrel Diameter2-11/16 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter2-1/4 in
-
Bore Diameter1.31 in
-
Overall Length1.3125 in
- Material, Ductile Iron
- Easy to install and remove
- Provide a true clamp fit
- Reverse Mountable
-
Alternative Part Number2105008066
-
Package DescriptionEACH
-
