Browning 5/8"-ID QD SD-STYLE BUSHINGS BRW SD-5/8

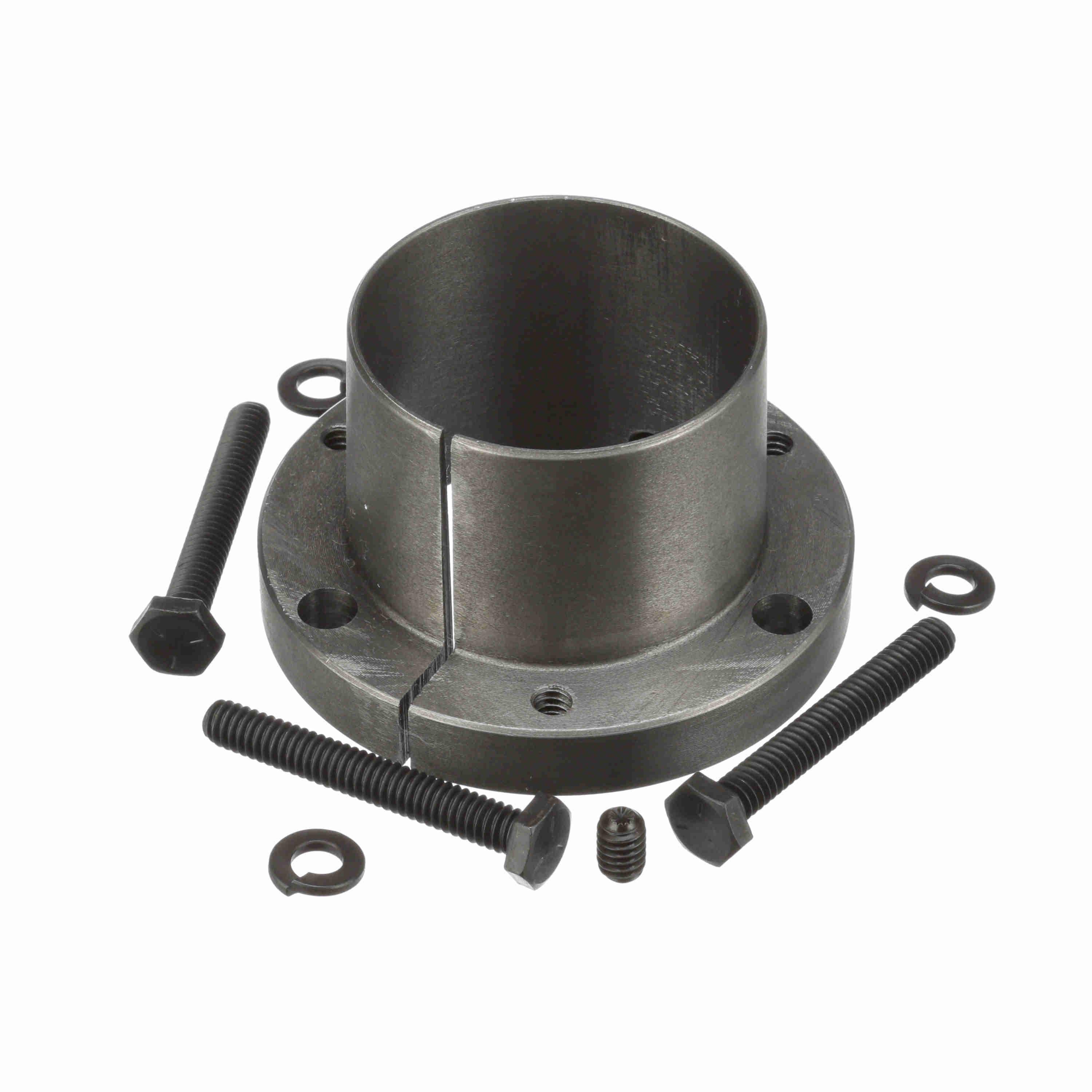

Browning® 1076587 QD Bushing, 5/8 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289321216
-
Manufacturer Part Number1076587
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
Screw Size1/4-20 x 1-7/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter5/8 in
-
Overall Length1.83 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberSD 5/8
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
Recently Viewed
Browning® 1076587 QD Bushing, 5/8 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Ductile Iron
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
