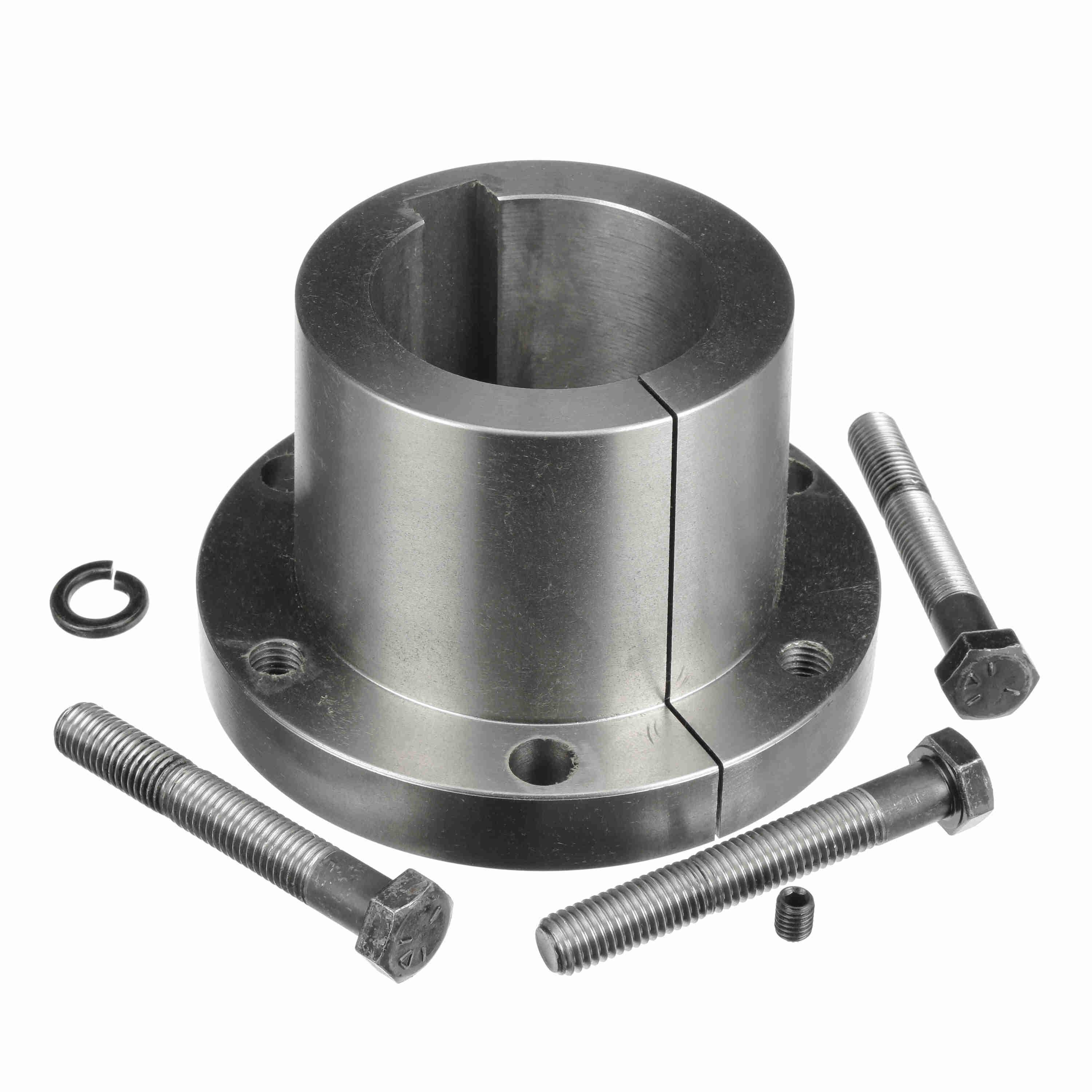

Browning 3-7/16"-ID QD J-STYLE BUSHINGS BRW J-3-7/16
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289370634
-
Manufacturer Part Number1074467
-
CountryUSA
-
MaterialSteel
-
Flange Diameter7-1/4 in
-
Flange Thickness1 in
-
Torque Rating45000 in-lb
-
TypeType J
-
Screw Size5/8-11 x 4-1/2 in
-
Number of Bolt Holes3
-
Barrel Diameter5.1484 in
-
Keyway Size7/8 x 7/16 in
-
Bolt Circle Diameter6-1/4 in
-
Bore Diameter3-7/16 in
-
Overall Length4.51 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
UNSPSC31171516
-
Alternative Part NumberJ 3 7/16
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
