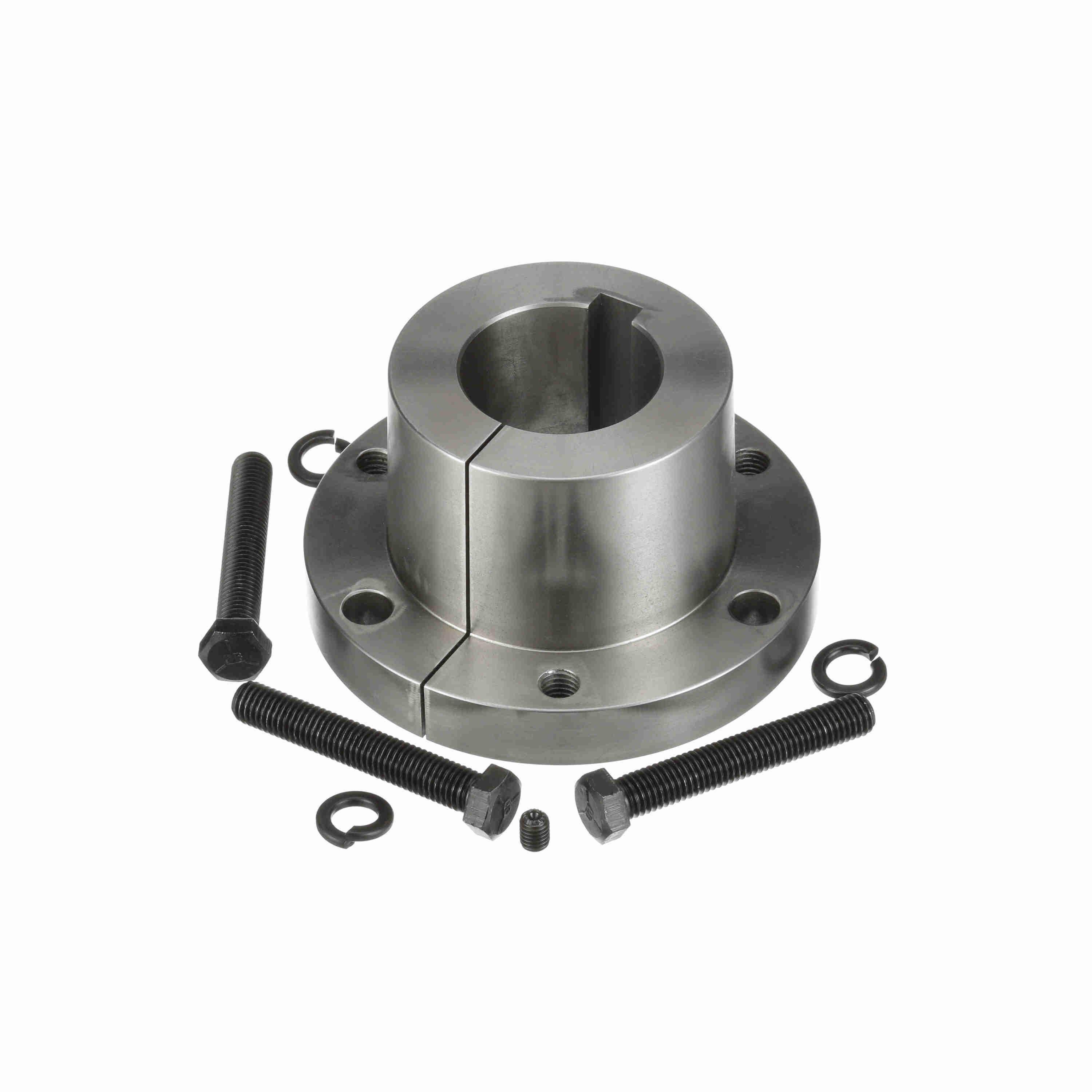

Browning 2-9/16"-ID QD F-STYLE BUSHINGS BRW F-2-9/16
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289330133
-
Manufacturer Part Number1073899
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter6-5/8 in
-
Flange Thickness15/16 in
-
Torque Rating30000 in-lb
-
TypeType F
-
Screw Size9/16-12 x 3-5/8 in
-
Number of Bolt Holes3
-
Barrel Diameter4-3/8 in
-
Keyway Size5/8 x 5/16 in
-
Bolt Circle Diameter5-5/8 in
-
Bore Diameter2-9/16 in
-
Overall Length3.68 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Permit four-way mounting
- Easy installation and removal
-
UNSPSC31171516
-
Alternative Part NumberF 2 9/16
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
