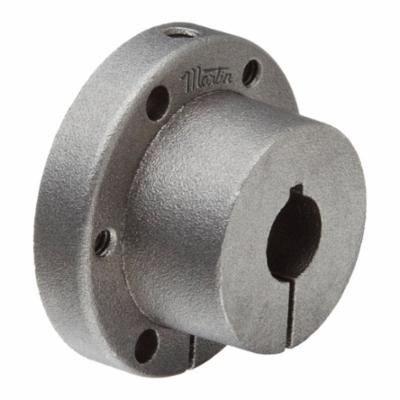

Martin SF 2 7/16 Standard QD Bushing, 2-7/16 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 2.063 in OAL, Ductile Iron
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
-
BrandMartin
-
UPC697950038186
-
Manufacturer Part NumberSF 2 7/16
-
CountryUSA|Canada
-
MaterialDuctile Iron
-
Flange Diameter4-5/8 in
-
Flange Thickness0.563 in
-
Torque Rating11000 in-lb
-
TypeStandard
-
Screw Size3/8-16 x 2 in
-
Number of Bolt Holes3
-
Hub Diameter6.38 in
-
Barrel Diameter3-1/8 in
-
Keyway Size3/16 x 5/8 in
-
Bolt Circle Diameter3-7/8 in
-
Bore Diameter2-7/16 in
-
Overall Length2.063 in
- Size SF bushing
- QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
- These bushings have a flange
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ QD bushings
-
UNSPSC31171605
-
Package Description1/PK
-
