Browning 1"-ID QD SH-STYLE BUSHINGS BRW SH-1

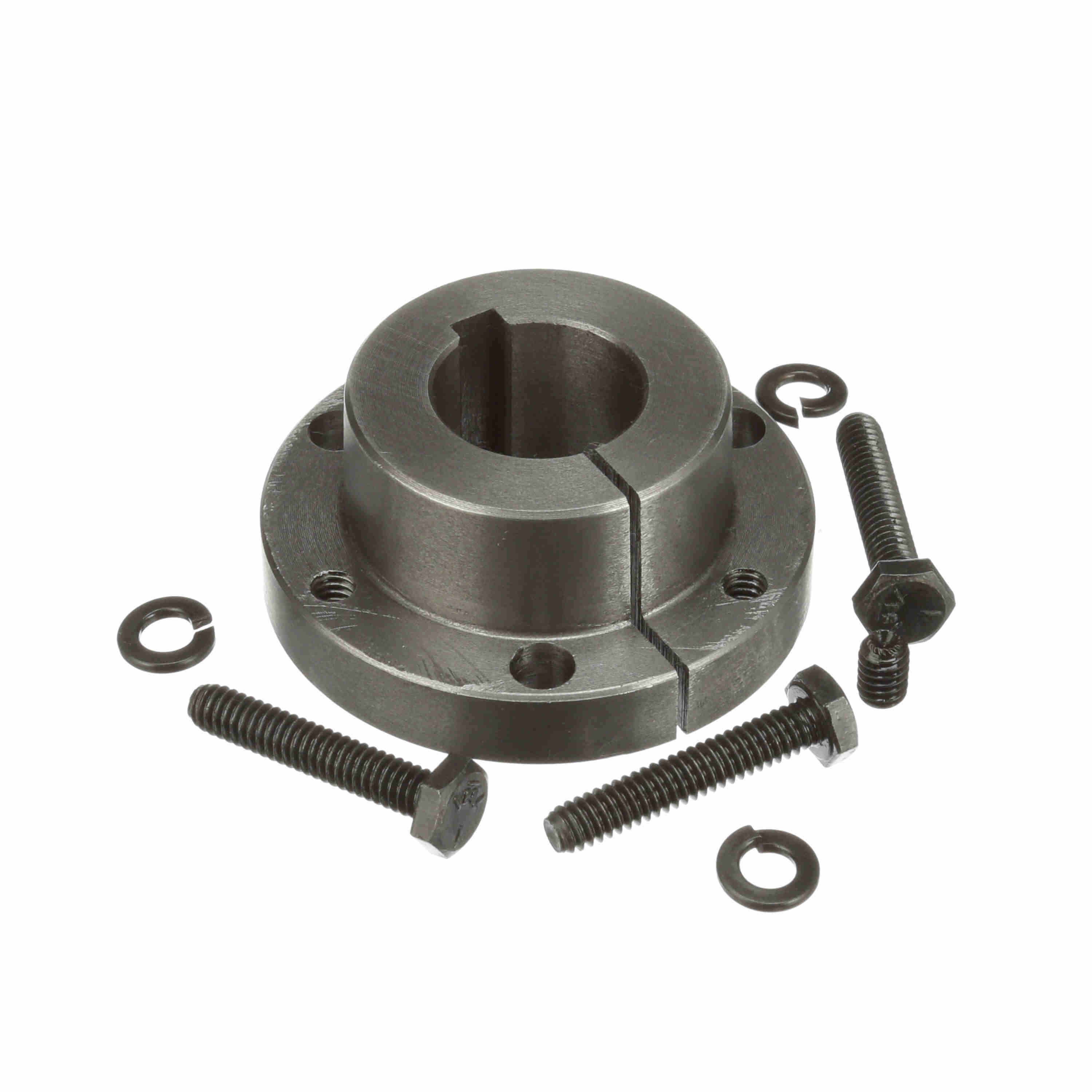

Browning® 1077601 QD Bushing, 1 in Dia Bore, 1-7/8 in Dia Barrel, 2-11/16 in Dia Flange, 1.2 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289355433
-
Manufacturer Part Number1077601
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter2-11/16 in
-
Flange Thickness7/16 in
-
Torque Rating3500 in-lb
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter1-7/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter2-1/4 in
-
Bore Diameter1 in
-
Overall Length1.2 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSH 1
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
