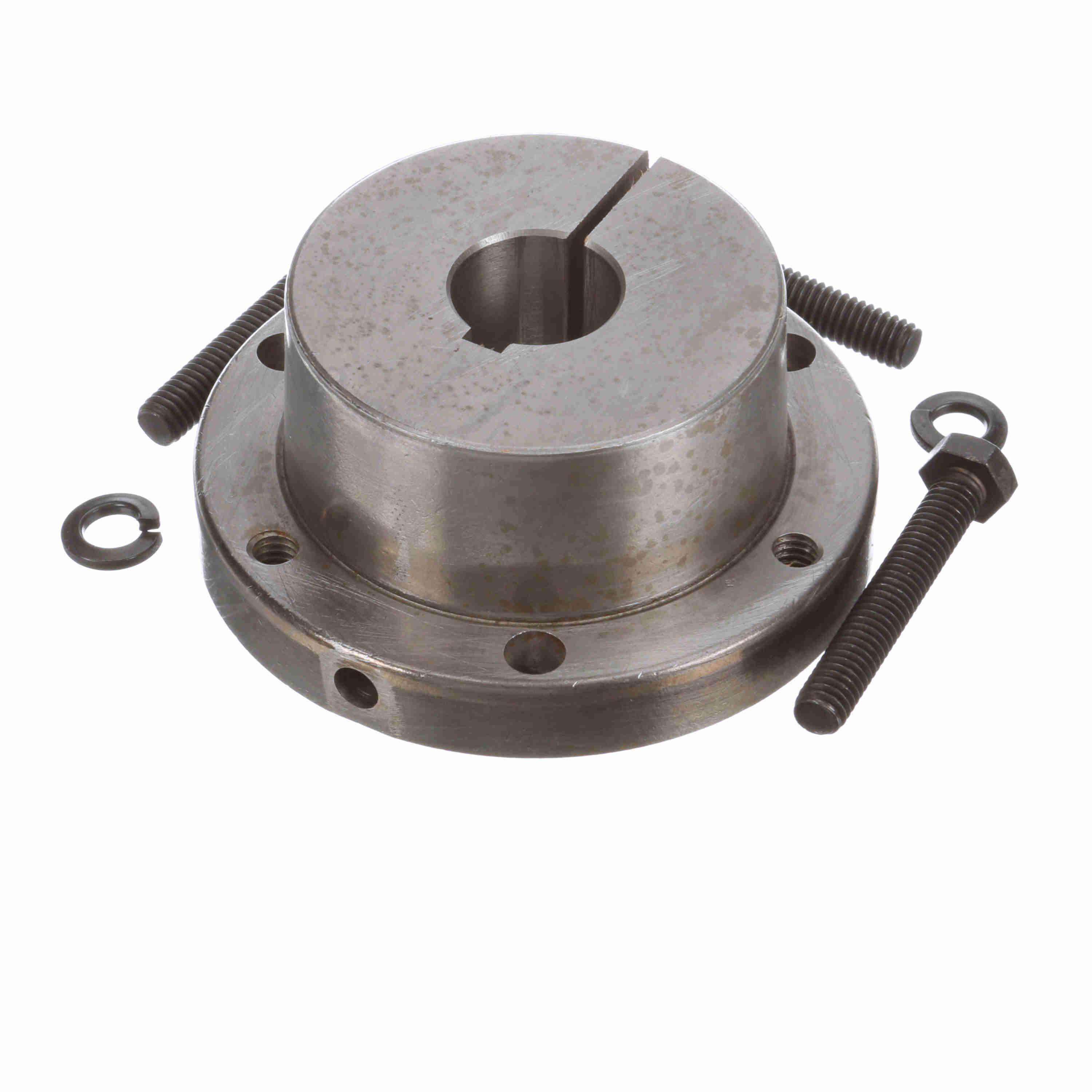

Browning® 1077809 QD Bushing, 15/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron

Name: Browning® 1077809 QD Bushing, 15/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron
Brand: Regal Rexnord
SKU: BRWSK15/16
Price: 51.6 USD
Availability: InStock

0 Ratings

$51.60

SKU: BRWSK15/16

Browning® 1077809 QD Bushing, 15/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron

In Stock

HCI of Jackson: 1

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: QD Bushings

Main specs

Brand

Browning®
UPC

662289335633
Manufacturer Part Number

1077809
Country

USA

Specification

Material

Ductile Iron
Flange Diameter

3-7/8 in
Flange Thickness

9/16 in
Torque Rating

7000 in-lb
Screw Size

5/16-18 x 2 in
Number of Bolt Holes

3
Barrel Diameter

2-13/16 in
Keyway Size

1/4 x 1/8 in
Bolt Circle Diameter

3-5/16 in
Bore Diameter

15/16 in
Overall Length

1-3/4 in
Suitable For Use With

Browning® Sheaves, Sprockets and Pulleys

Features

Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
Self locking taper provides the highest degree of mechanical locking product to product
Conventional mounting
Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

Additional Information

Alternative Part Number

SK 15/16
UNSPSC

31171516
Package Description

EACH
Warranty

1 Year
