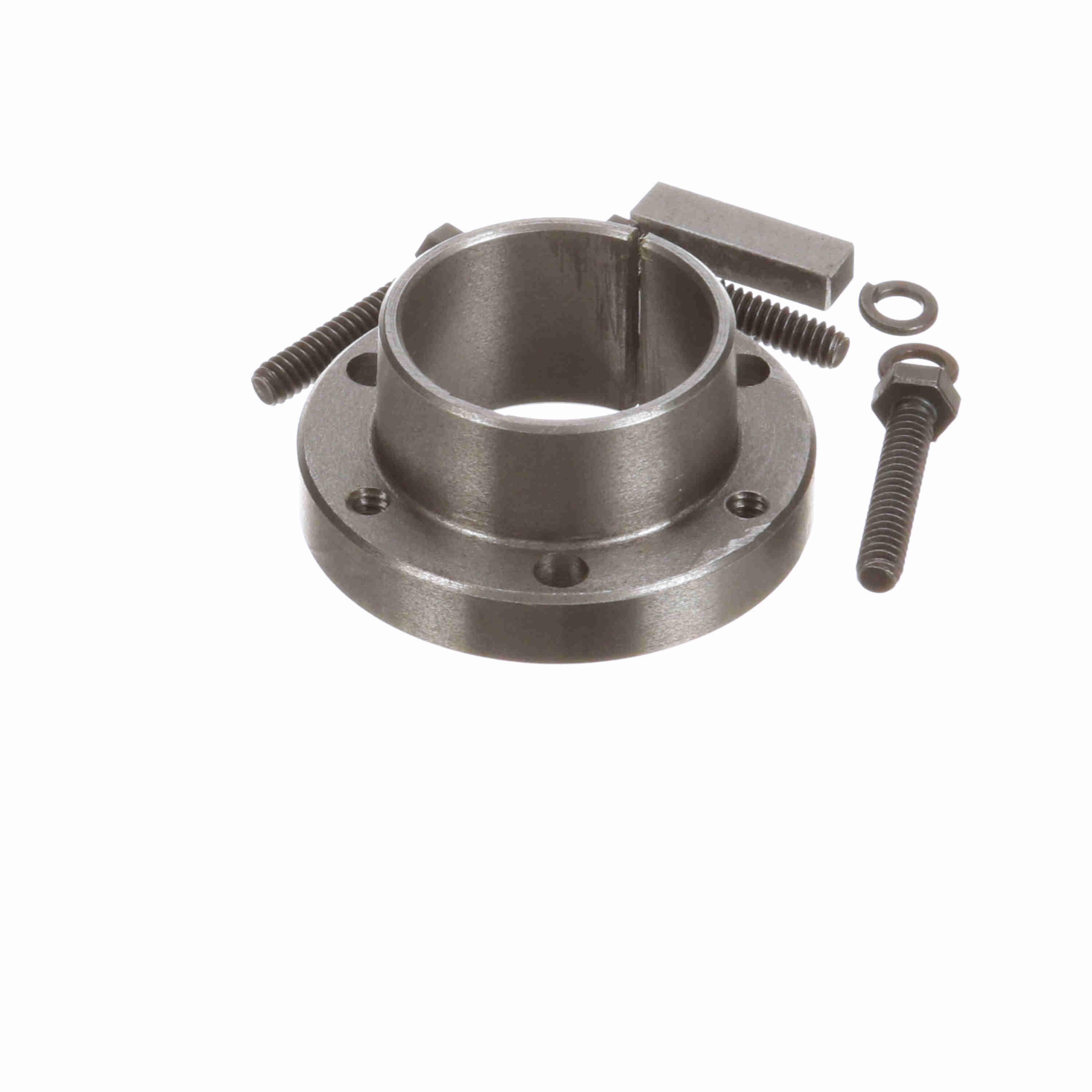

Browning® 1074756 QD Bushing, 1-3/16 in Dia Bore, 1-3/8 in Dia Barrel, 2 in Dia Flange, 0.89 in OAL, Ductile Iron
Browning® 1074756 QD Bushing, 1-3/16 in Dia Bore, 1-3/8 in Dia Barrel, 2 in Dia Flange, 0.89 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289394579
-
Manufacturer Part Number1074756
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter2 in
-
Flange Thickness5/16 in
-
Torque Rating1000 in-lb
-
Screw Size10-24 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1-3/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter1-21/32 in
-
Bore Diameter1-3/16 in
-
Overall Length0.89 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Conventional mounting
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberJA 1 3/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
