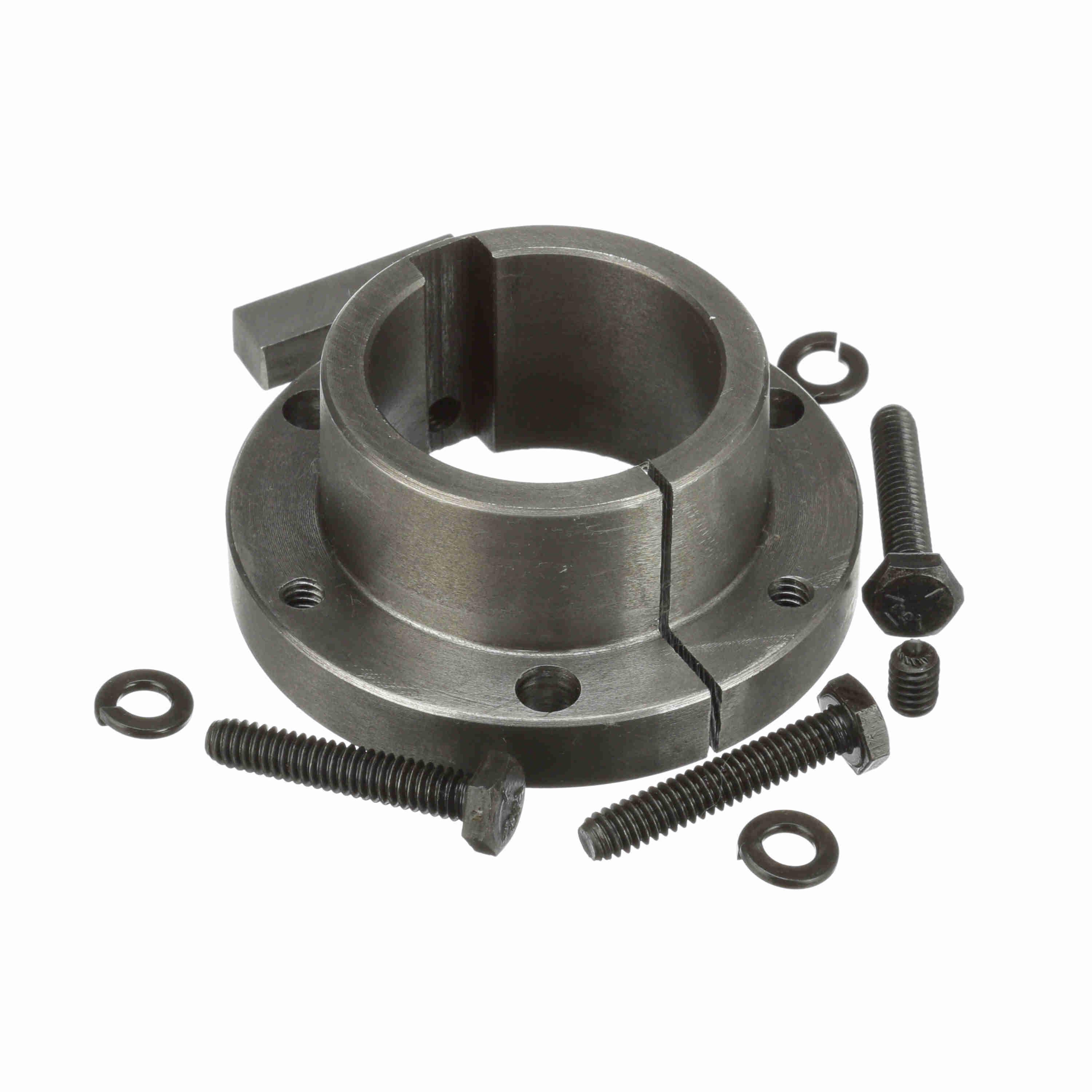

Browning® 1077049 QD Bushing, 1-11/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289414963
-
Manufacturer Part Number1077049
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
TypeStandard
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-11/16 in
-
Overall Length1.33 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- No shaft required when used with Idler Bushing
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Permit four-way mounting
- Easy installation and removal
-
UNSPSC31171516
-
Alternative Part NumberSDS 1 11/16
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Instruction/Installation Manual
