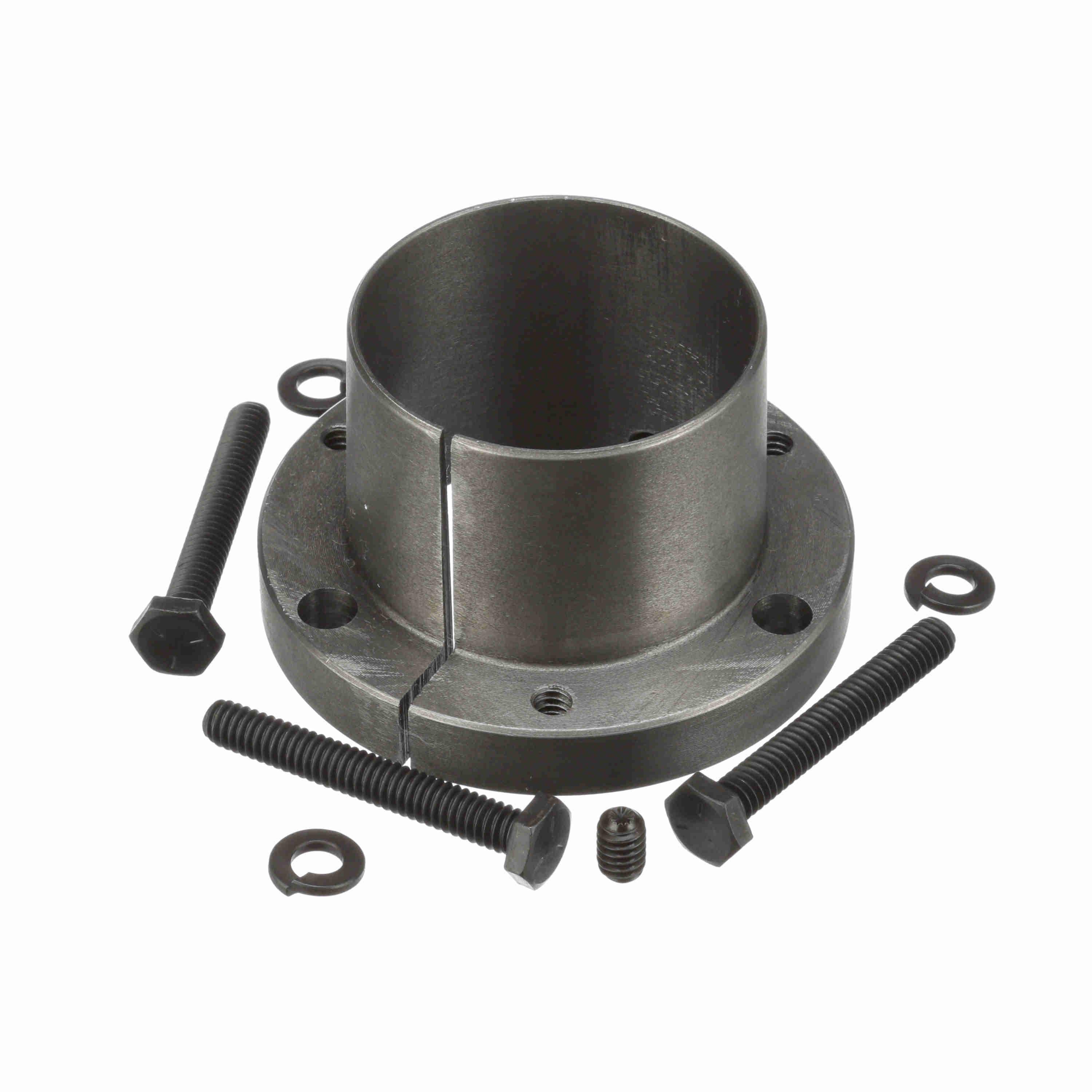

Browning® 1076611 Type SD Q-D® Bushing, 13/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Cast Iron
Browning® 1076611 Type SD Q-D® Bushing, 13/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Cast Iron
-
BrandBrowning®
-
UPC662289384563
-
Manufacturer Part Number1076611
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness0.45 in
-
Torque Rating5000 in-lb
-
TypeType SD
-
Screw Size1/4-20 x 1-7/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter13/16 in
-
Overall Length1.83 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberSD 13/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
