Browning 1-3/8"-ID 3/8"-KEYWAY SF BUSHINGS BRW SF-1-3/8-3/8

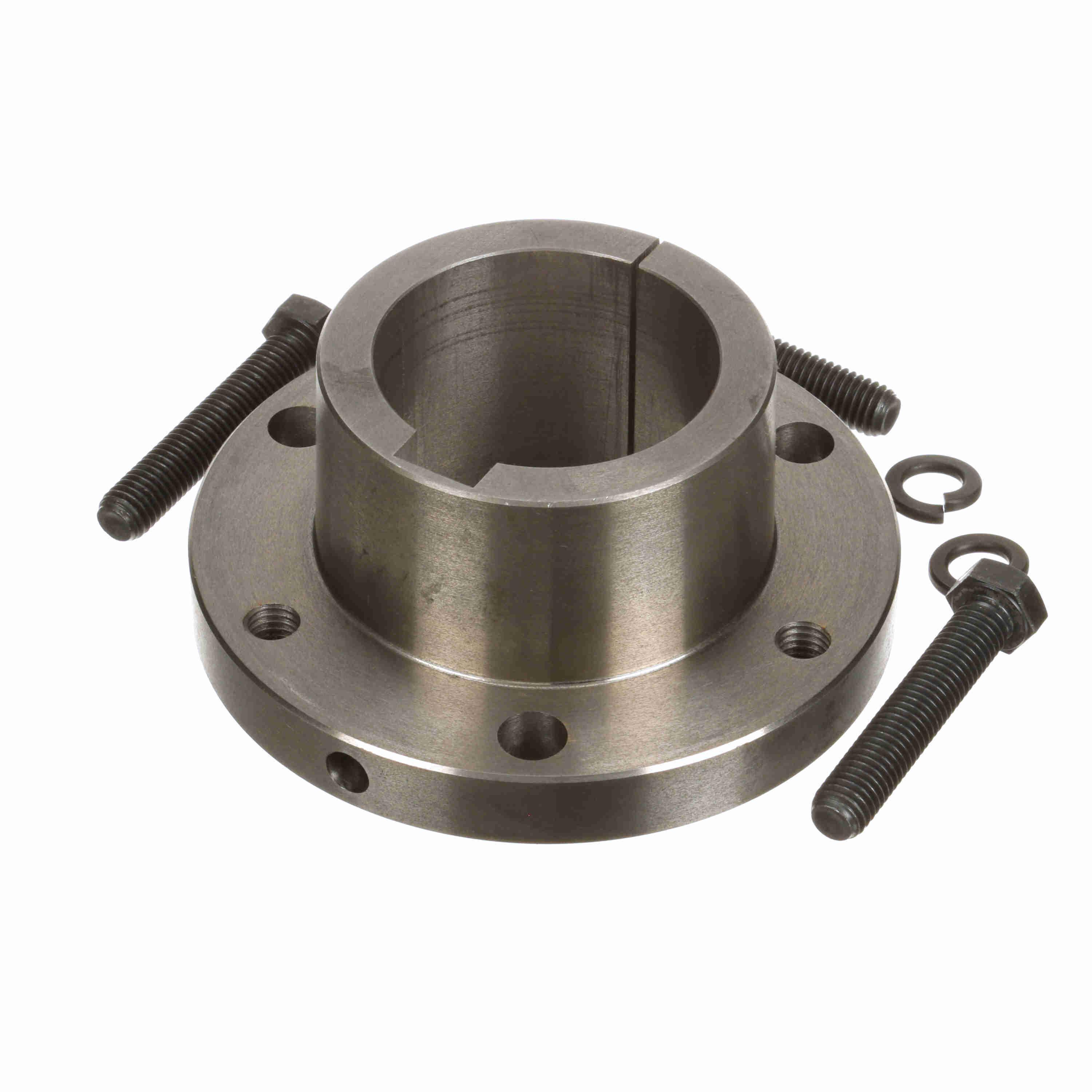

BrowningĀ® 1077262 Type SF Q-DĀ® Bushing, 1-3/8 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 2 in OAL, Steel
-
BrandBrowningĀ®
-
UPC662289321278
-
Manufacturer Part Number1077262
-
CountryUSA
-
MaterialSteel
-
Flange Diameter4-5/8 in
-
Flange Thickness9/16 in
-
Torque Rating11000 in-lb
-
TypeType SF
-
Screw Size3/8-16 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter3-1/8 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter3-7/8 in
-
Bore Diameter1-3/8 in
-
Overall Length2 in
-
Suitable For Use WithGearbeltĀ® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Clear Pack packaging for end cap display
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSF 1 3/8 3/8
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Instruction/Installation Manual
