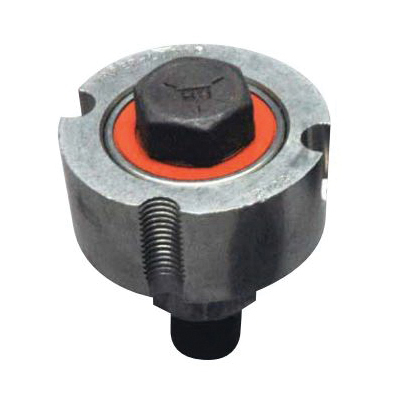

Gates® Power Transmission 2517-IDLR-BUSH Taper Lock Idler Bushing, 3/4 in Dia Bore, 3-13/16 in OAL
Idlers are used to take-up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.
-
BrandGates® Power Transmission
-
UPC72053883886
-
Manufacturer Part Number2517-IDLR-BUSH
-
CountryUSA|Canada
-
Screw Size1/2-13 x 1 in
-
Number of Bolt Holes3
-
Bore Diameter3/4 in
-
Overall Length3-13/16 in
- Size 2517 bushing
- Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets
- Lubrication and maintenance are not required
- A perfect solution for customizing belt drives
- Turn standard V-belt pulleys or synchronous belt sprockets into a free-spinning idler/tensioner
-
Alternative Part Number77202517
-
UNSPSC31171605
-
Package DescriptionEACH
-
Catalog
-
Full Engineering Drawing
-
Specification Sheet
-
Instruction/Installation Manual
