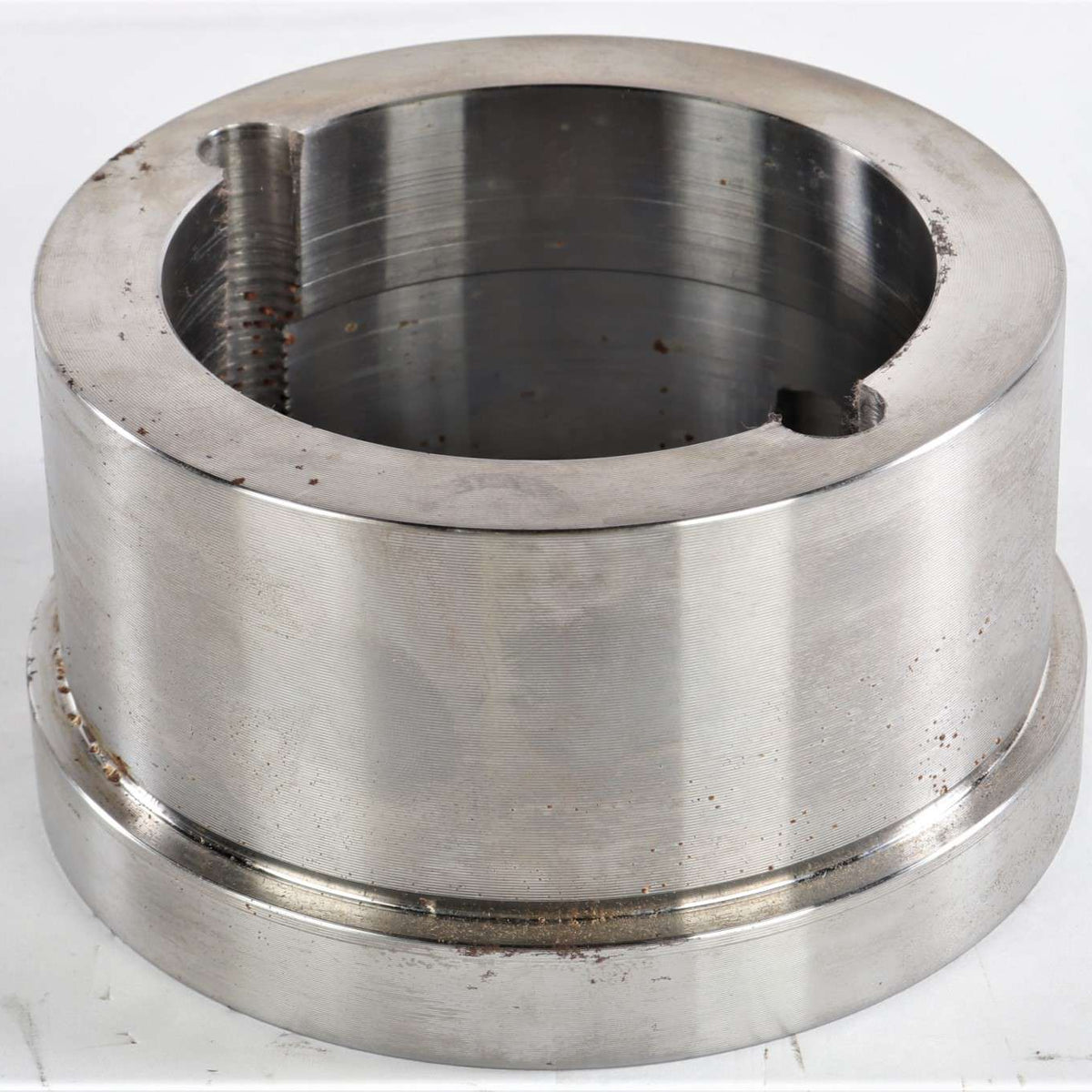

WA30 Dodge® 228087 Taper-Lock Type W/WA Weld-On Hub, 4-1/4 in Bore, 5-1/2 in OD, 4 in Bolt Circle Diameter, 3 in OAL, Steel
Weld-on hubs are made of 1015-1025 steel, drilled, tapped and taper bored to receive the taper-lock bushing. They are useful for welding into fan rotors, pulleys, plate sprockets, etc., which must be firmly mounted onto shafting. Four types of hubs are available from stock.
-
BrandDodge®
-
UPC782475136926
-
Manufacturer Part Number228087
-
CountryUSA
-
MaterialSteel
-
TypeTaper-Lock Type W/WA
-
Number of Bolt Holes2
-
Bolt Circle Diameter4 in
-
Outside Diameter5-1/2 in
-
Bore Diameter4-1/4 in
-
Overall Length3 in
-
Pilot Diameter5-1/8 in
- Type W/WA taper-lock-rugged, full-length size for single-hub, heavy duty applications
- For use with type 3030 bushing
-
Alternative Part NumberWA30
-
UNSPSC31171901
-
Specification Sheet
