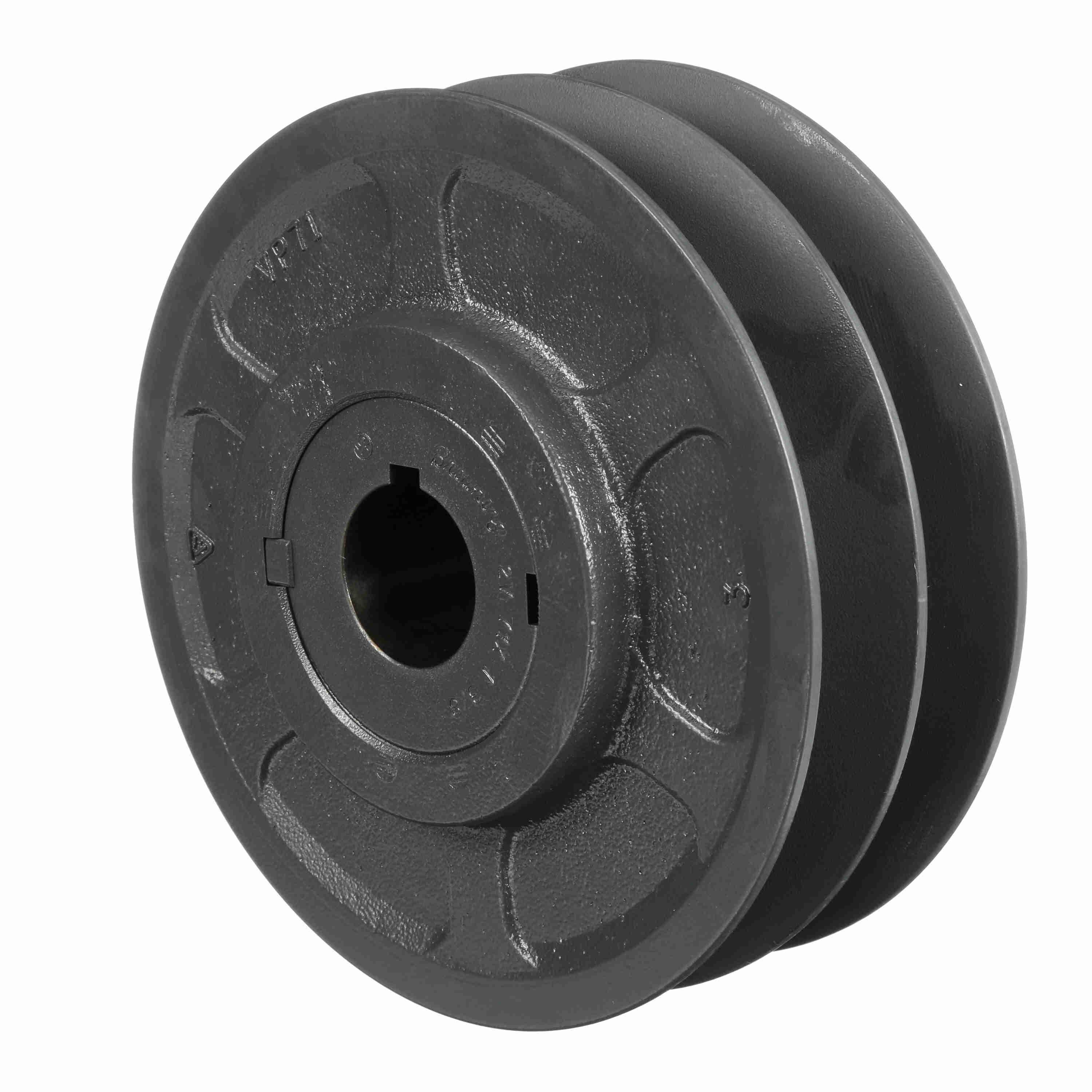

Browning® 1046226 2VP Type 5 FHP Variable Pitch Sheave, 1-3/8 in Finished Bore, 7.1 in OD, 2 Grooves, 5.5 to 6.5 in (A)/5.8 to 7 in (B)/5.8 to 7 in (5V) Dia Pitch, 1-5/8 to 2-3/8 in W Face
Browning® variable pitch design offers pitch diameter ranges 3.4 - 8.5 in to 25 hp. Unique manufacturing design ensures precise adjustability, balance and unmatched performance. Browning® variable pitch sheaves help reduce vibration by having a robust casting ribbed design that helps improve balance and heat dissipation. These sheaves offer tight thread tolerances for superior performance. 1 and 2 groove sheaves will accept the widest range of belts of any manufacturer 3L, 4L, A, AX, 5L, B, BX, 5V and 5VX.
-
BrandBrowning®
-
UPC662289245741
-
Manufacturer Part Number1046226
-
CountryUSA
-
Face Width1-5/8 to 2-3/8 in
-
Pitch Diameter5.5 to 6.5 in (A)/5.8 to 7 in (B)/5.8 to 7 in (5V)
-
MaterialCast Iron
-
TypeType 5
-
Series2VP
-
Number of Grooves2
-
Outside Diameter7.1 in
-
Bore Diameter1-3/8 in
-
Bore TypeFinished
-
Overall Length3-1/4 in
-
Suitable For Use WithGripBelt® 4L/A, 5L/B and 5V Cross Section FHP V-Belt
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
- One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number2VP71X 1 3/8
-
UNSPSC24101613
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
