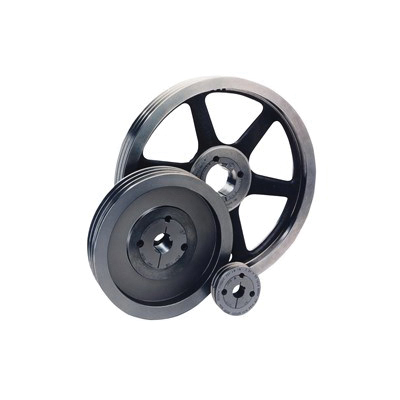

1/3-V-3.351610 Dodge® 112175 Single Groove Sheave, Taper-Lock® Bore, 1/2 to 1-11/16 in Dia Bore, 3.35 in OD, 3.3 in Dia Pitch, 1.06 in W Face
All Dodge® V-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards for smooth operation and extended belt life. This provides low economical costs per hp transmitted due to shock load and vibration isolation creating clean, quiet operation.
-
BrandDodge®
-
UPC782475087136
-
Manufacturer Part Number112175
-
CountryUSA
-
Face Width1.06 in
-
Bushing Type1610
-
Pitch Diameter3.3 in
-
MaterialCast Iron
-
TypeBlock Heavy Duty Type A1
-
Outside Diameter3.35 in
-
Bore Diameter1/2 to 1-11/16 in
-
Bore TypeTaper-Lock®
-
Overall Length1.06 in
-
Suitable For Use With3V-Cross Section V-Belts
- Isolates shock loads and vibration
- Misalignment capability
- Low maintenance
- No lubrication required
- Quiet operation motors, etc. are normally at a higher db level than V-drives
- Efficiency of 95% is typical
-
Alternative Part Number1-3V3.35-1610
-
UNSPSC31171804
-
Package DescriptionEACH
-
Line Drawing
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
