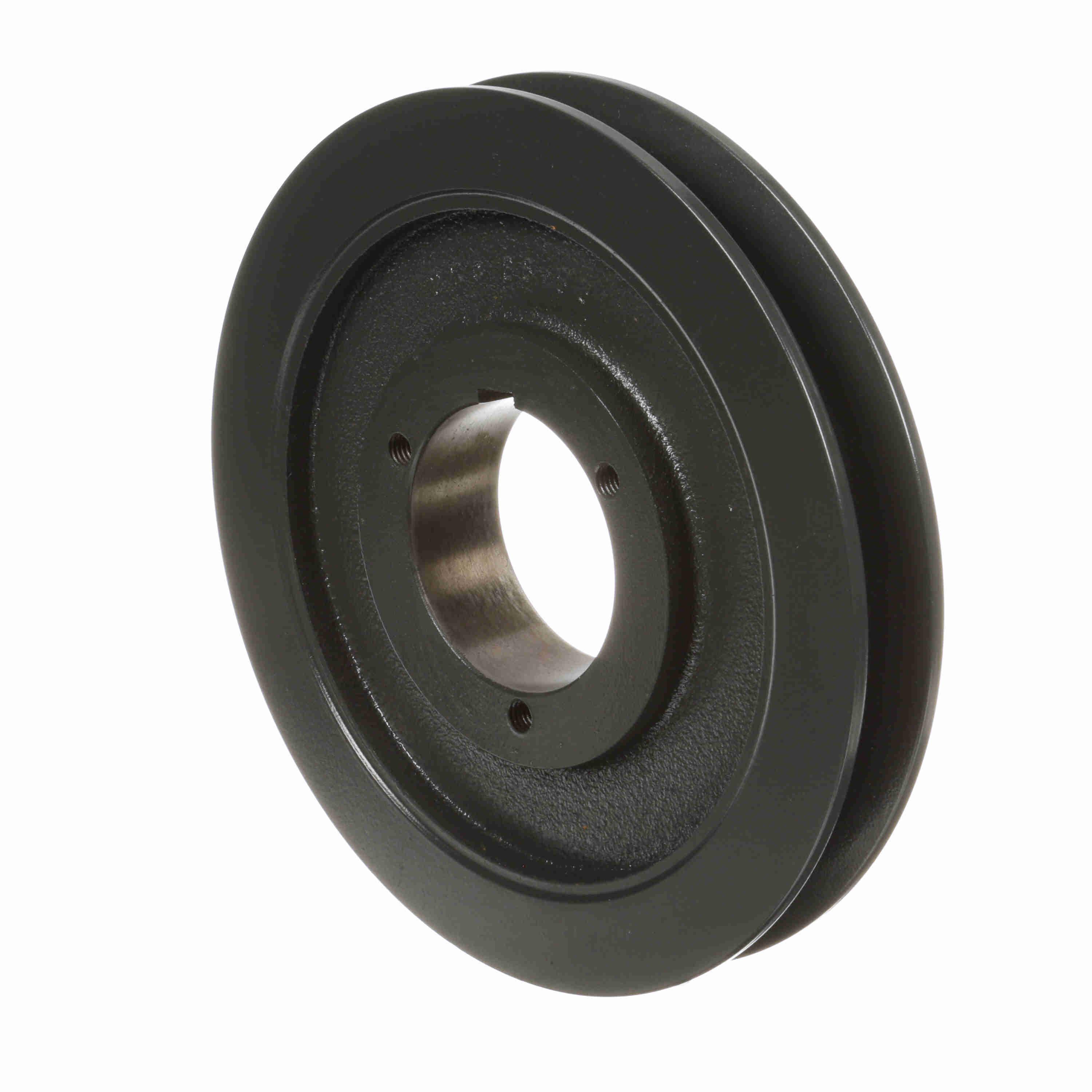

Browning® Classical Gripbelt® 1009422 TC Series Type 10 Web Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 9 in OD, 9 in Dia Pitch, 1-1/4 in W Face
Browning® Classical Gripbelt® 1009422 TC Series Type 10 Web Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 9 in OD, 9 in Dia Pitch, 1-1/4 in W Face
-
BrandBrowning®
-
UPC662289303106
-
Manufacturer Part Number1009422
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeQ1
-
Pitch Diameter9 in
-
MaterialCast Iron
-
TypeType 10 Web
-
SeriesTC Series
-
Hub Diameter4-1/8 in
-
Hub Projection27/32 in
-
Outside Diameter9 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-47/64 in
-
Suitable For Use WithC-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TC86
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
