Browning 1-GRV C-BELT SHEAVES/PULLEYS BRW 1-TC-96

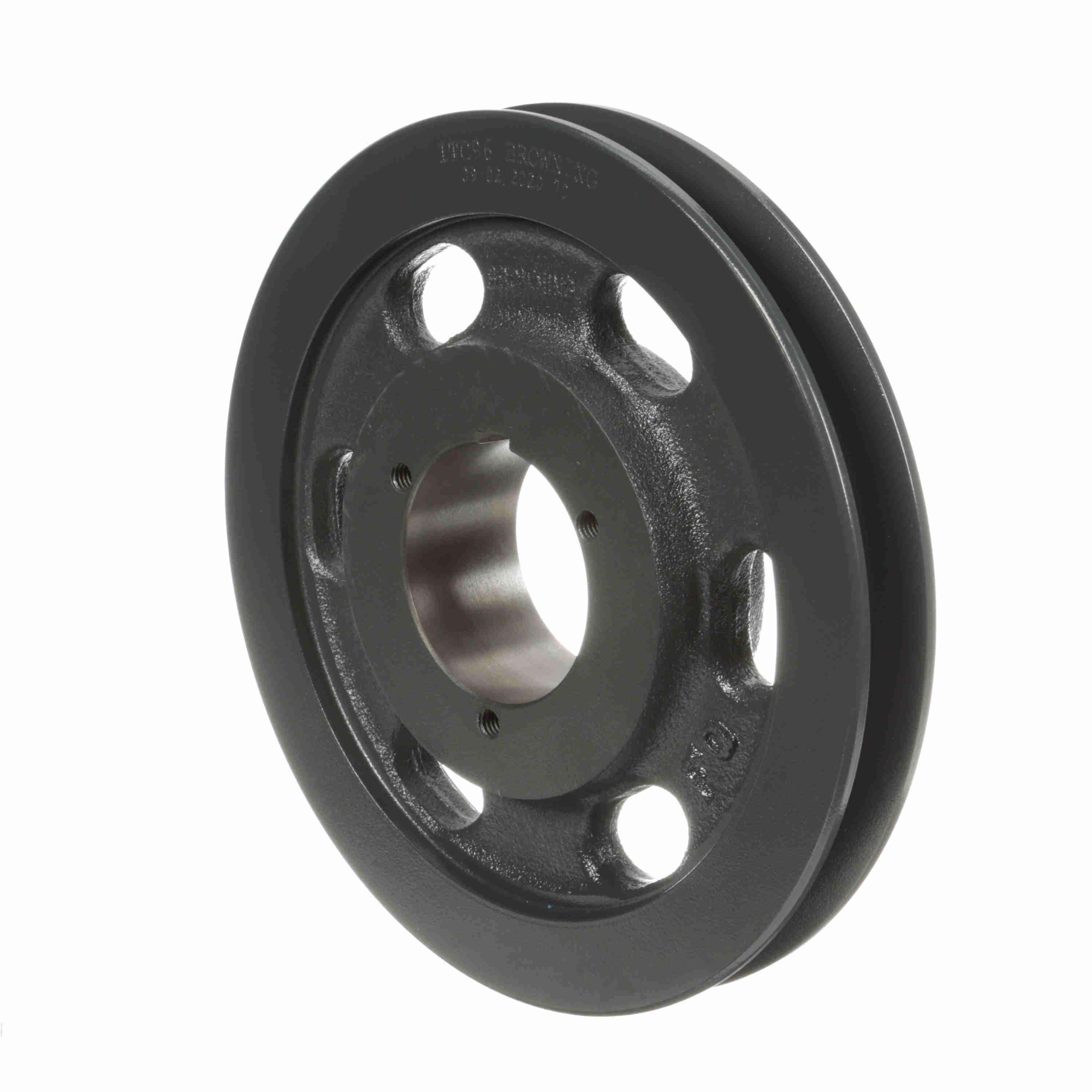

Browning® Classical Gripbelt® 1009695 TC Series Arm Type 16 Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 10 in OD, 10 in Dia Pitch, 1-1/4 in W Face
-
BrandBrowning®
-
UPC662289173365
-
Manufacturer Part Number1009695
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeQ1
-
Pitch Diameter10 in
-
MaterialCast Iron
-
TypeArm Type 16
-
SeriesTC Series
-
Hub Diameter4-1/8 in
-
Hub Projection1-3/32 in
-
Outside Diameter10 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-53/64 in
-
Suitable For Use WithC-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TC96
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
