Browning 1-GRV 3-V-BELT P-BUSH SHEAVES BRW 1-P-3-V-80

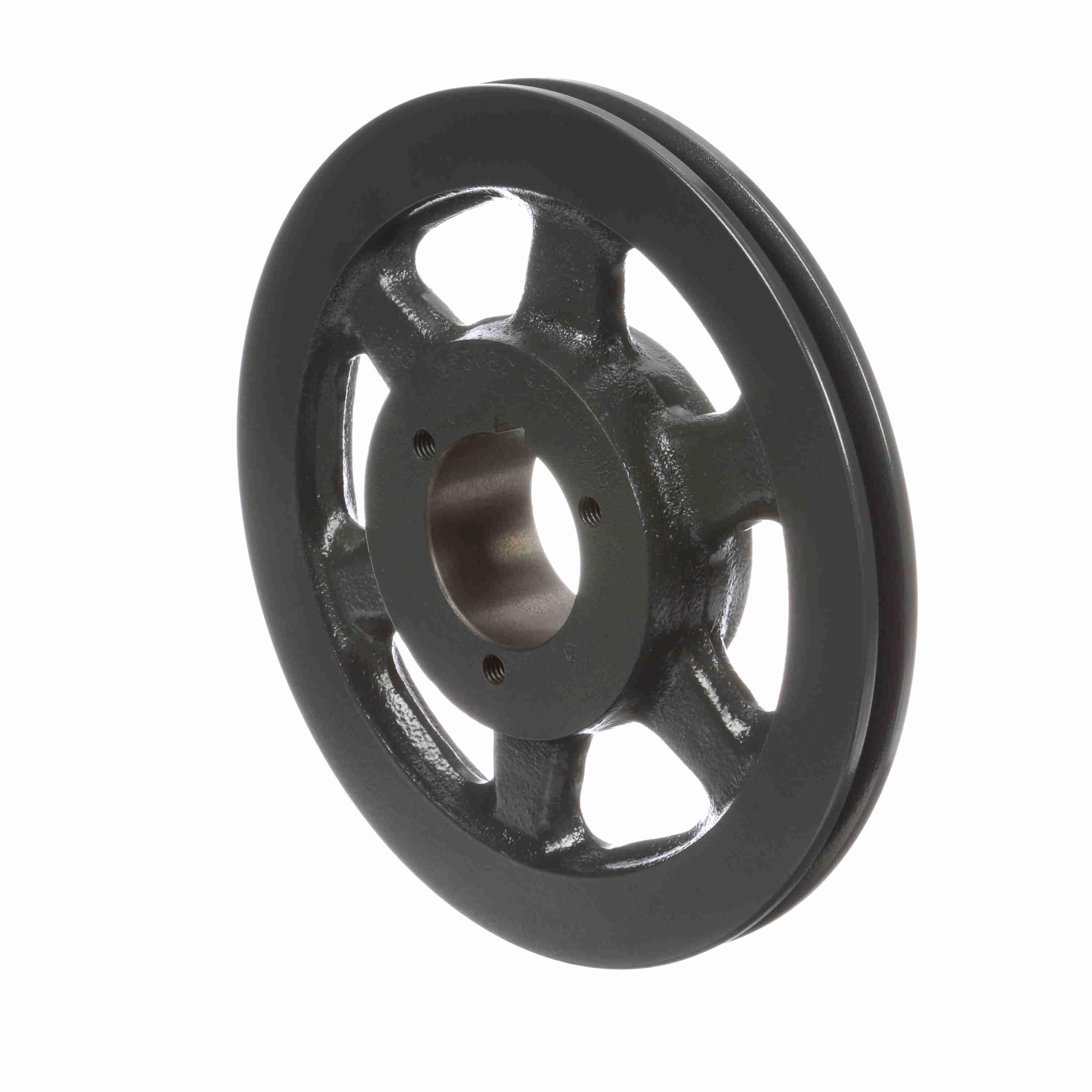

Browning® Gripbelt® 1060722 Arm Type 16 Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 8 in OD, 7.95 in Dia Pitch, 11/16 in W Face
-
BrandBrowning®
-
UPC662289150045
-
Manufacturer Part Number1060722
-
CountryUSA
-
Face Width11/16 in
-
Bushing TypeP1
-
Pitch Diameter7.95 in
-
MaterialCast Iron
-
TypeArm Type 16
-
Hub Diameter3 in
-
Hub Projection15/16 in
-
Outside Diameter8 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use With3V-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1P3V80
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
