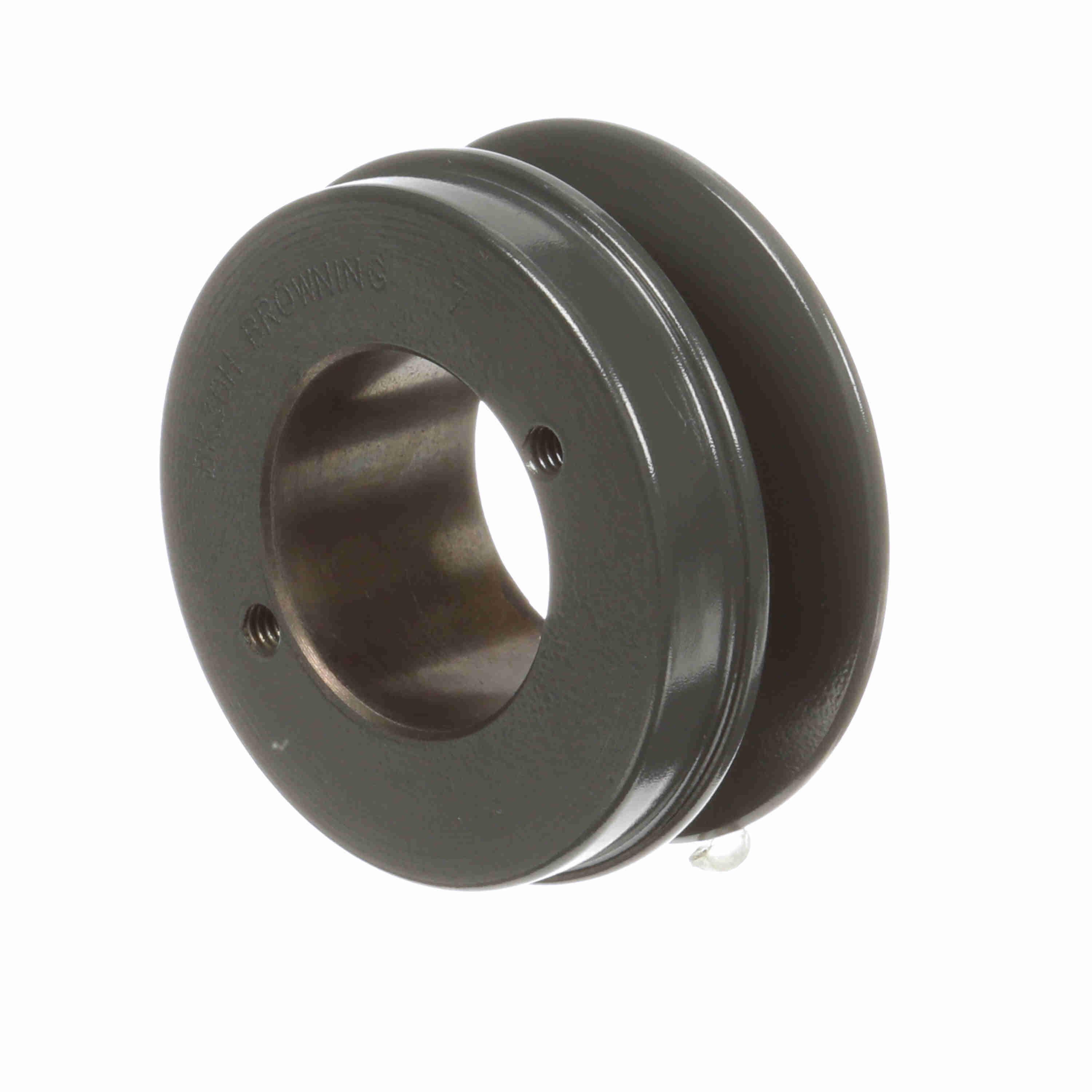

Browning® Classical Gripbelt® 1042381 BK Series Type 1 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 3.15 in OD, 2.6 in (A)/3.1 in (B) Dia Pitch, 7/8 in W Face

0 Ratings
$44.20
In Stock
SKU: BRWBK30H
noimage_new

Browning® Classical Gripbelt® 1042381 BK Series Type 1 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 3.15 in OD, 2.6 in (A)/3.1 in (B) Dia Pitch, 7/8 in W Face

In Stock
HCI of Jackson: 1
HCI of Dyersburg: 1
HCI of Humboldt: 1
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Single Groove Sheaves
Main specs
  • Brand
    Browning®
  • UPC
    662289272228
  • Manufacturer Part Number
    1042381
  • Country
    USA
Specification
  • Face Width
    7/8 in
  • Bushing Type
    H
  • Pitch Diameter
    2.6 in (A)/3.1 in (B)
  • Finish
    Gray Painted
  • Material
    Cast Iron
  • Type
    Type 1
  • Series
    BK Series
  • Hub Projection
    29/32 in
  • Outside Diameter
    3.15 in
  • Bore Diameter
    3/8 to 1-1/2 in
  • Bore Type
    Split Taper
  • Overall Length
    1-15/16 in
  • Suitable For Use With
    4L/A and 5L/B Cross Section Belt
Features
  • Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Tightened micro-finish on groove walls for increased belt life
  • Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
  • VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
Competitor Information
Competitor Name Competitor Part Number
Applied Industrial Technologies 100783576
Motion Industries 00728250
Additional Information
  • Alternative Part Number
    BK30H
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
