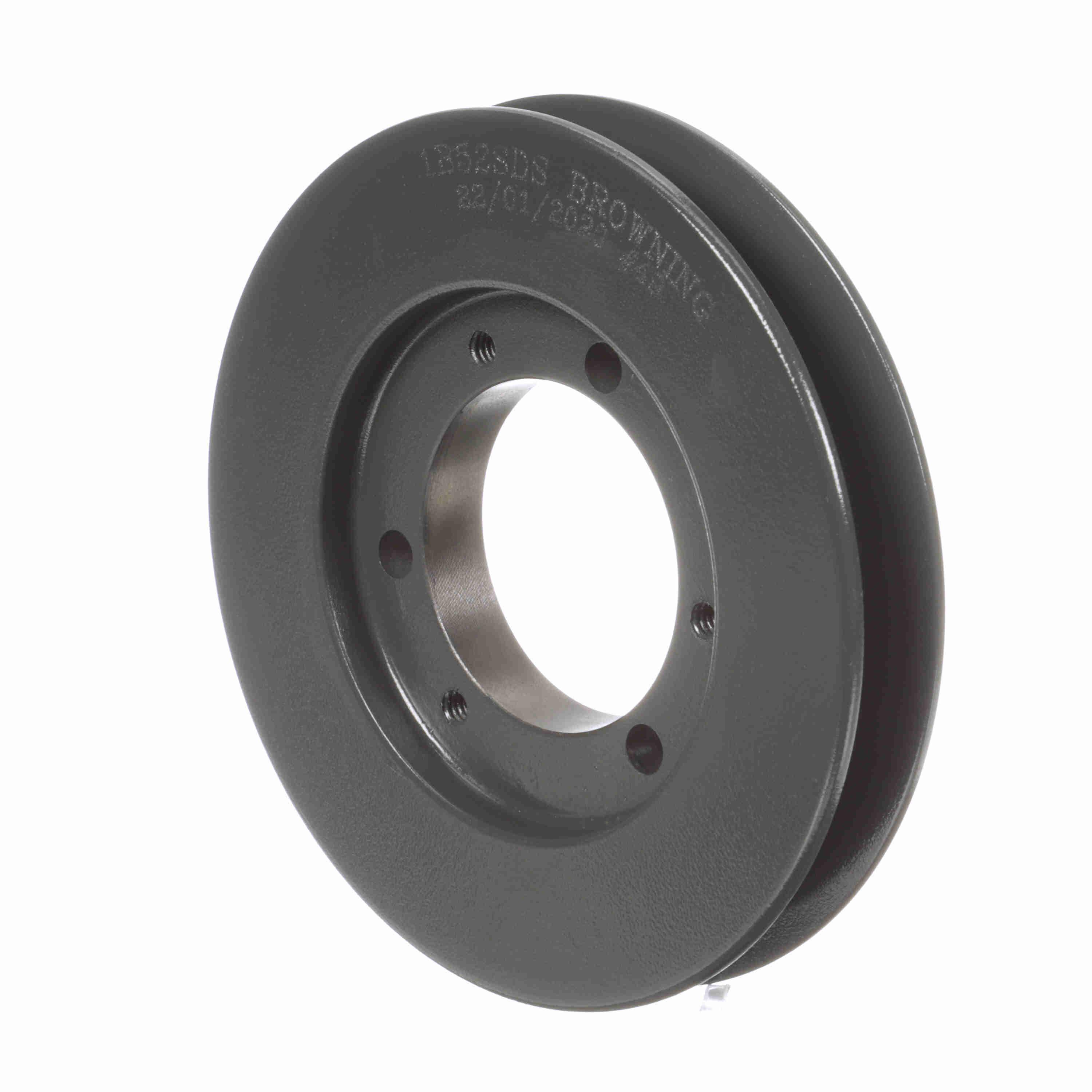

Browning® Classical Gripbelt® 1003920 Type C1 Single Groove Sheave, QD® Bore, 1/2 to 2 in Dia Bore, 5.55 in OD, 5 in (A)/5-1/2 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1003920 Type C1 Single Groove Sheave, QD® Bore, 1/2 to 2 in Dia Bore, 5.55 in OD, 5 in (A)/5-1/2 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289320998
-
Manufacturer Part Number1003920
-
CountryUSA
-
Face Width7/8 in
-
Bushing TypeSDS
-
Pitch Diameter5 in (A)/5-1/2 in (B)
-
MaterialCast Iron
-
TypeType C1
-
Hub Projection0.41875 in
-
Outside Diameter5.55 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.33 in
-
Suitable For Use WithAB Cross Section V-Belts
- Precision balanced
- Easy-on/easy-off
- QD® bushings can be reverse mounted
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1B52SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
