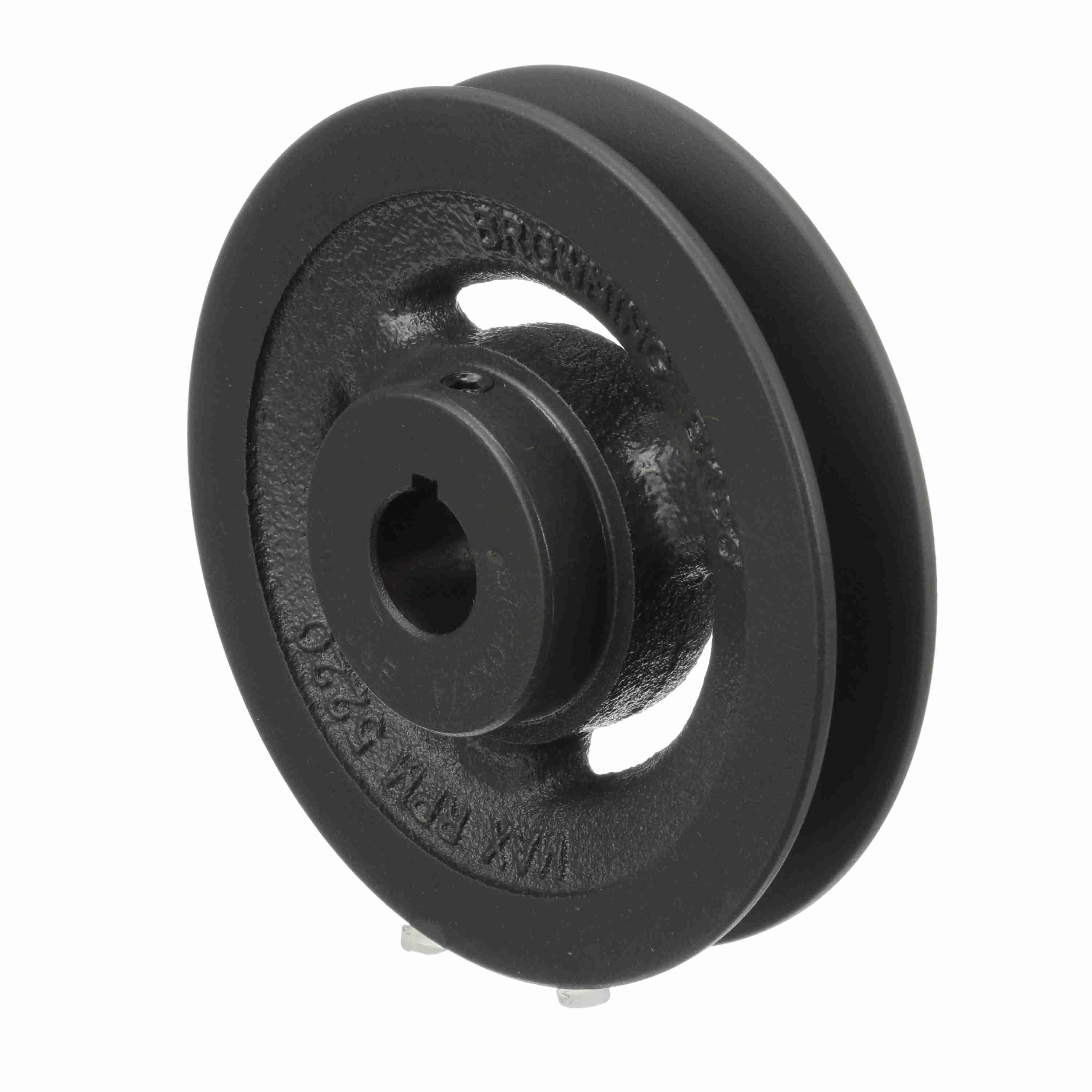

Browning® Classical Gripbelt® 1028398 BK Series Type 3 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 4-3/4 in OD, 4.2 in (A)/4.7 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028398 BK Series Type 3 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 4-3/4 in OD, 4.2 in (A)/4.7 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289108053
-
Manufacturer Part Number1028398
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter4.2 in (A)/4.7 in (B)
-
MaterialCast Iron
-
TypeType 3
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter4-3/4 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
-
Alternative Part NumberBK50X3/4
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
