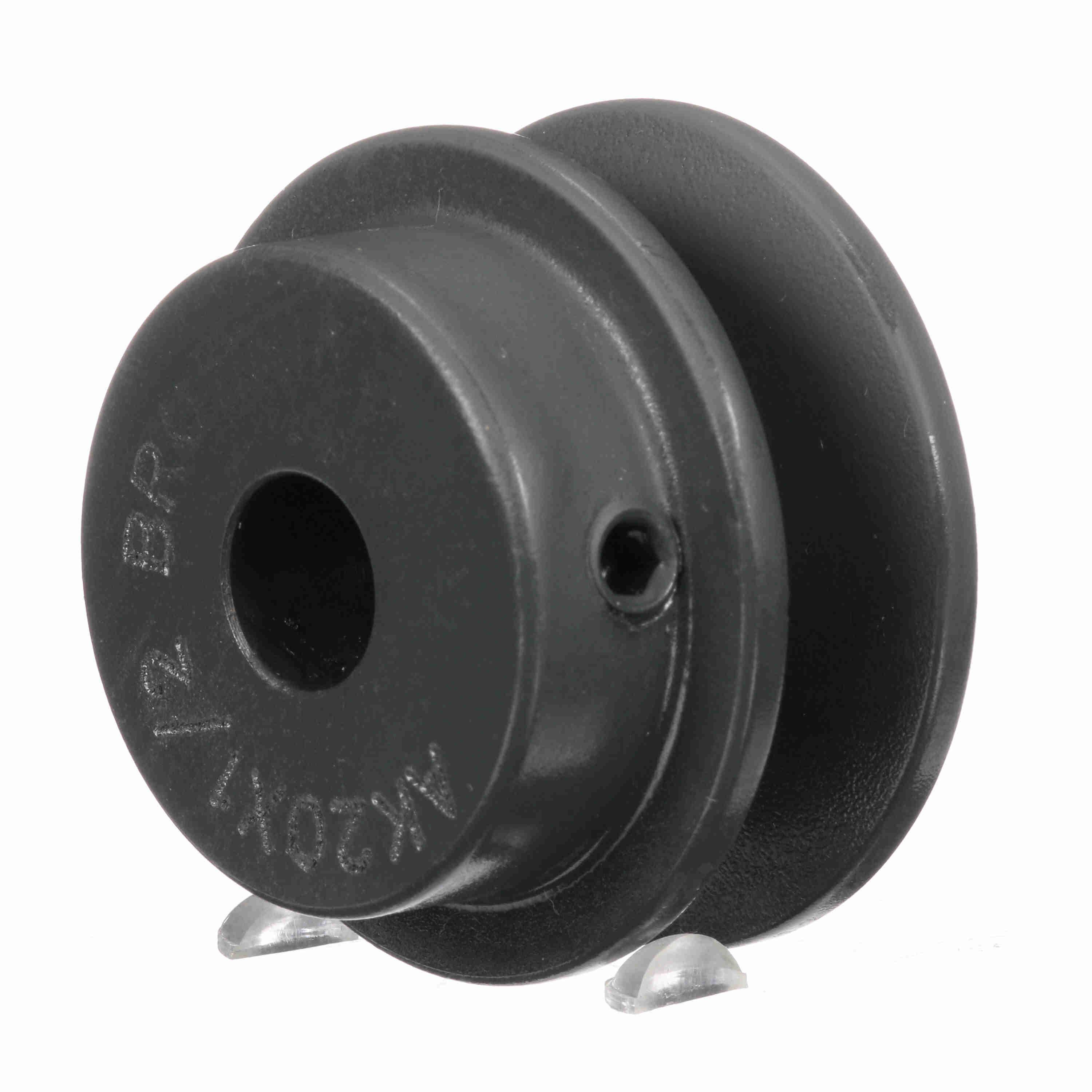

Browning® Classical Gripbelt® 1025824 AK Series Type 1 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 2 in OD, 2 in (A)/1.46 in (3L) Dia Pitch, 21/32 in W Face
Browning® Classical Gripbelt® 1025824 AK Series Type 1 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 2 in OD, 2 in (A)/1.46 in (3L) Dia Pitch, 21/32 in W Face
-
BrandBrowning®
-
UPC662289235919
-
Manufacturer Part Number1025824
-
CountryUSA
-
Face Width21/32 in
-
Pitch Diameter2 in (A)/1.46 in (3L)
-
MaterialCast Iron
-
TypeType 1
-
SeriesAK Series
-
Hub Projection7/16 in
-
Outside Diameter2 in
-
Bore Diameter1/2 in
-
Bore TypeFinished
-
Overall Length1-3/32 in
-
Suitable For Use With4L/A and 3L Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
- More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
- This enables you to reduce drive cost
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberAK20X1/2
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
