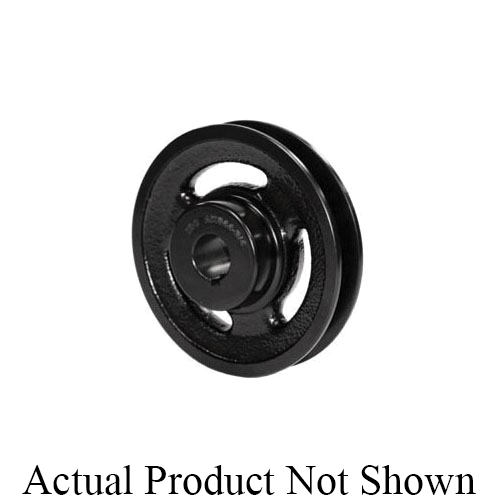

IDC Select® IDC AK054-15/16 Light Duty Type 3 Single Groove Sheave With 1/4 x 1/8 in Keyway and Setscrew, Bored to Size Bore, 15/16 in Dia Bore, 5-1/4 in OD, 5 in Dia Pitch, 3/4 in W Face
IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.
-
BrandIDC Select®
-
UPC887412010304
-
Manufacturer Part NumberIDC AK054-15/16
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter5 in
-
FinishBaked Enamel
-
MaterialClass 25 Cast Iron
-

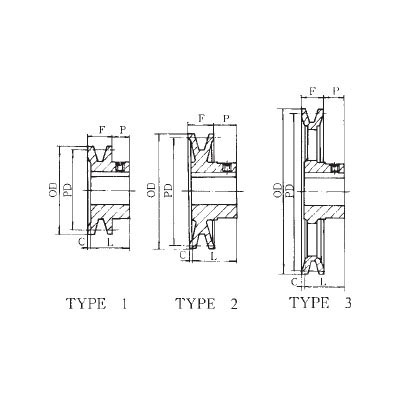

TypeLight Duty Type 3
-
Hub Projection15/32 in
-
Outside Diameter5-1/4 in
-
Bore Diameter15/16 in
-
Bore TypeBored to Size
-
Suitable For Use With3L and 4L/A Cross Section V-Belts
- Precision machined from gray cast iron
- Statically balanced
- Cast iron sheaves should not exceed 6500 fpm rim speed
- Special or dynamic balancing should be considered when speeds exceed 5000 fpm
- 4.66 in Dia pitch 3L/5 in Dia pitch 4L(A)
-
UNSPSC31171804
-
Package Description1/PK
-
Standards/ApprovalsASTM Specified|SAE Standard
-
