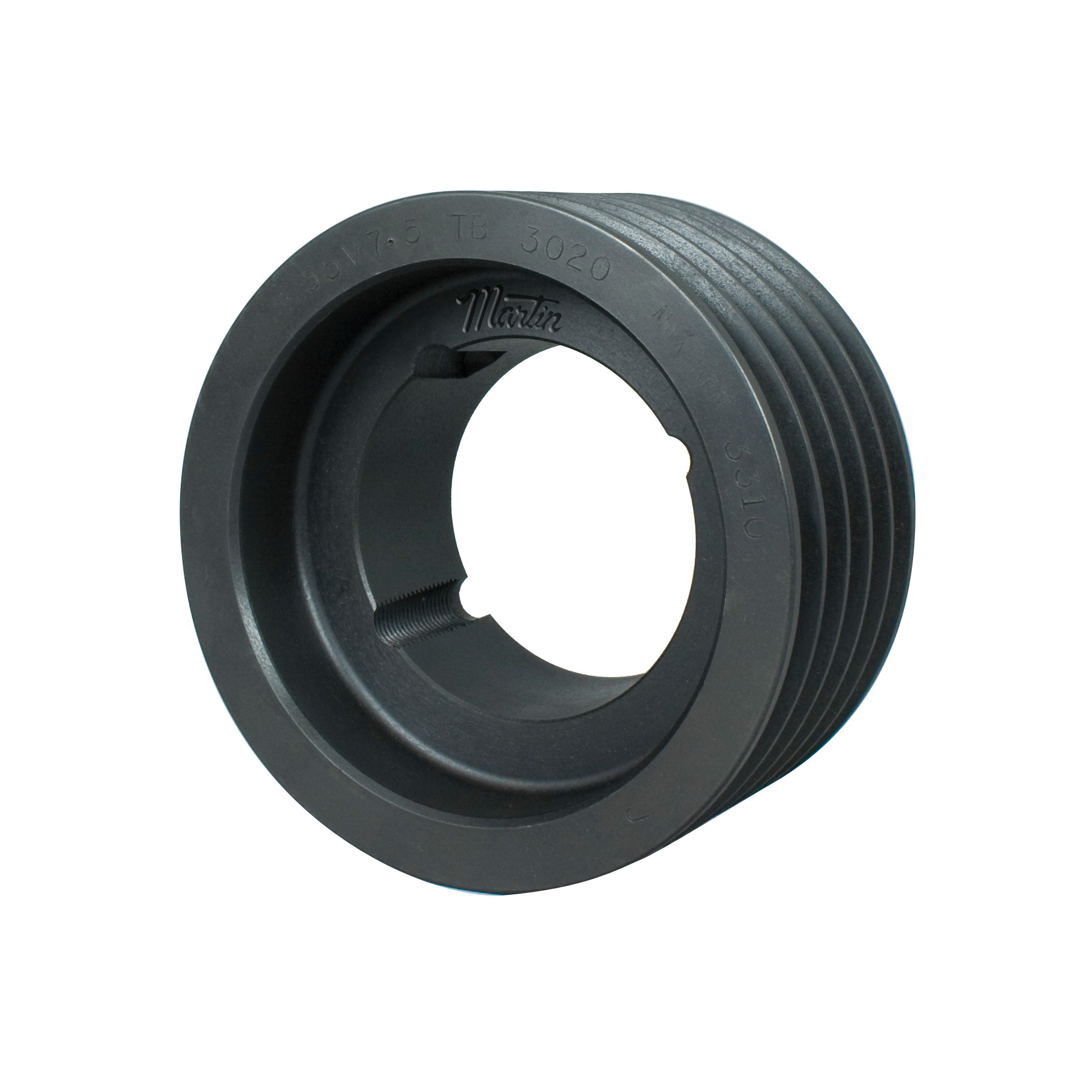

Martin Hi-Cap® 5 5V 750 TB Solid Type A-1 Wedge Stock Sheave, 15/16 to 2-3/4 in TB Bushed Bore, 7-1/2 in OD, 5 Grooves, 7.4 in Dia Pitch, 3-3/4 in W Face
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.
-
BrandMartin
-
UPC697950157047
-
Manufacturer Part Number5 5V 750 TB
-
CountryUSA|Canada
-
Face Width3-3/4 in
-
Bushing Type3020
-
Pitch Diameter7.4 in
-
MaterialGray Cast Iron
-
TypeSolid Type A-1
-
Number of Grooves5
-
Outside Diameter7-1/2 in
-
Bore Diameter15/16 to 2-3/4 in
-
Bore TypeTB Bushed
-
Overall Length3-3/4 in
-
Suitable For Use With5V-Cross Section V-Belts
- Interchangeable with other manufacturer's taper bushings
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
-
UNSPSC31171804
-
