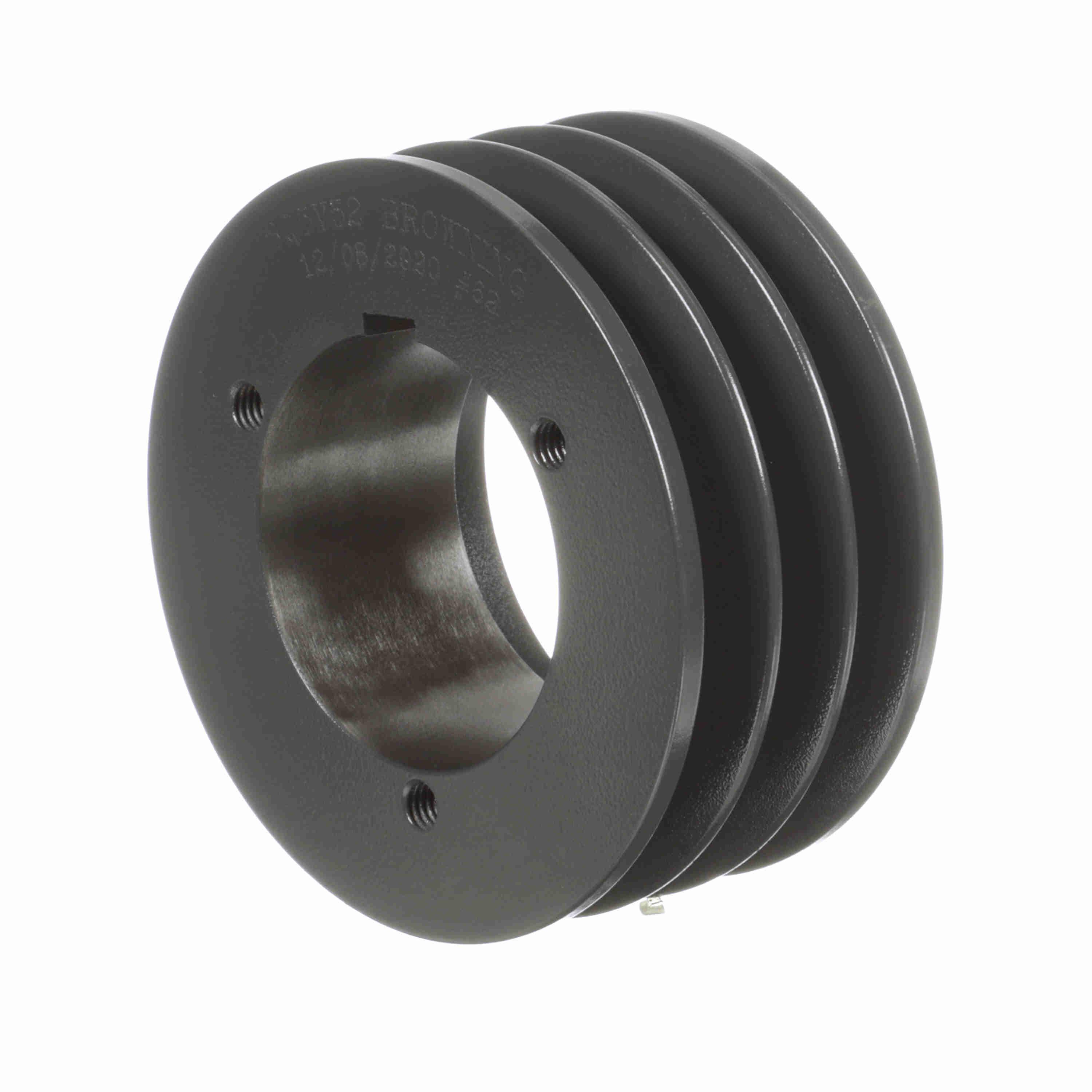

Browning® 1061308 Type 5 Multiple Sheave, 3/4 to 2-11/16 in Split Taper Bore, 5.2 in OD, 3 Grooves, 5.1 in Dia Pitch, 2-3/8 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289546299
-
Manufacturer Part Number1061308
-
CountryUSA
-
Face Width2-3/8 in
-
Bushing TypeQ1
-
Pitch Diameter5.1 in
-
MaterialCast Iron
-
TypeType 5
-
Number of Grooves3
-
Outside Diameter5.2 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length3-13/32 in
-
Suitable For Use WithGripBelt® 5V Cross Section V-Belt
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
- One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number3Q5V52
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
