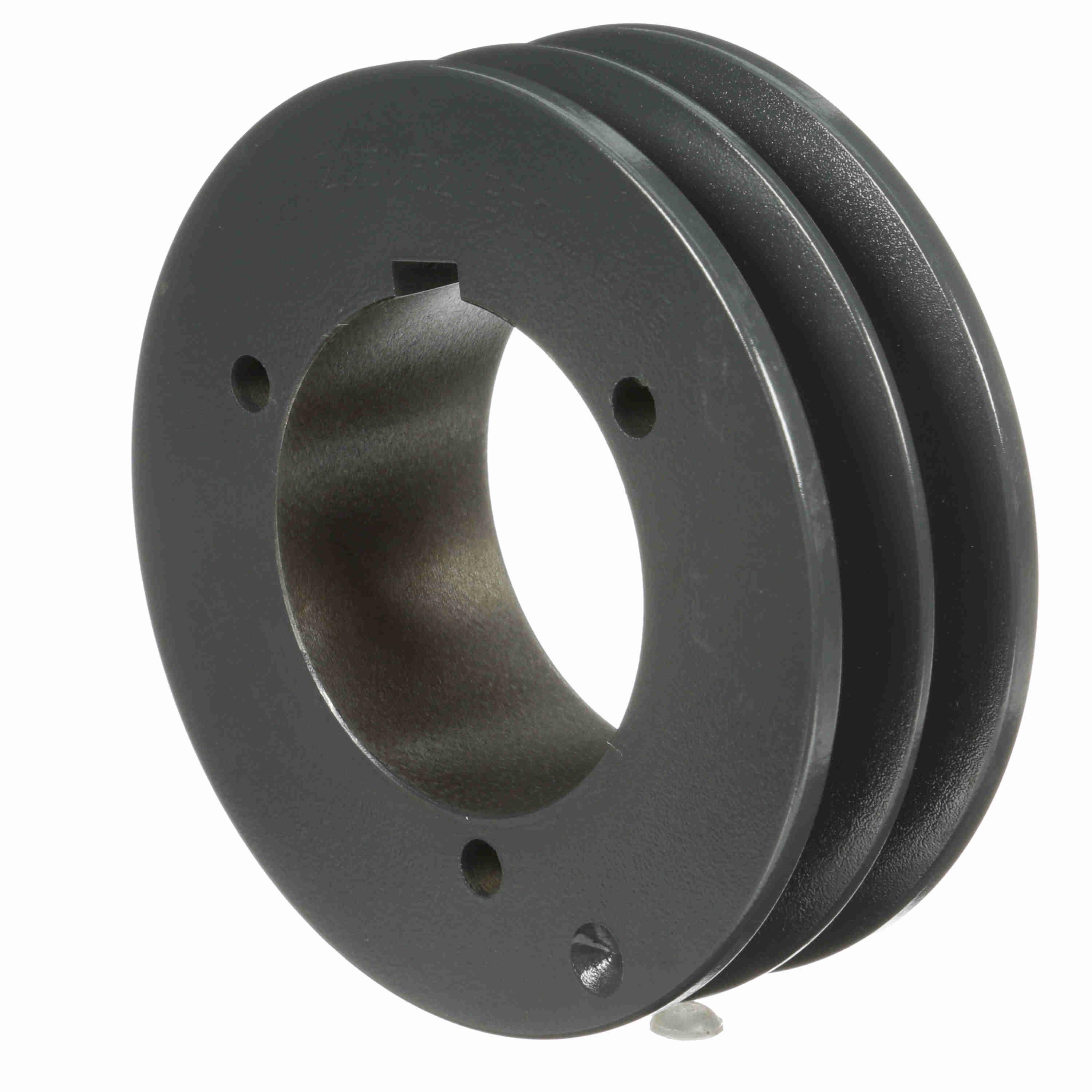

Browning® 1061290 Type 5 Multiple Sheave, 3/4 to 2-11/16 in Split Taper Bore, 5.2 in OD, 2 Grooves, 5.1 in Dia Pitch, 1-11/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289536245
-
Manufacturer Part Number1061290
-
CountryUSA
-
Face Width1-11/16 in
-
Bushing TypeQ1
-
Pitch Diameter5.1 in
-
MaterialCast Iron
-
TypeType 5
-
Hub Projection27/32 in
-
Number of Grooves2
-
Outside Diameter5.2 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-49/64 in
-
Suitable For Use WithGripbelt® 5V Cross Section Belt
- Incorporates Browning® split taper bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Sheaves are statically balanced to assure smooth, vibration free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part Number2Q5V52
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
