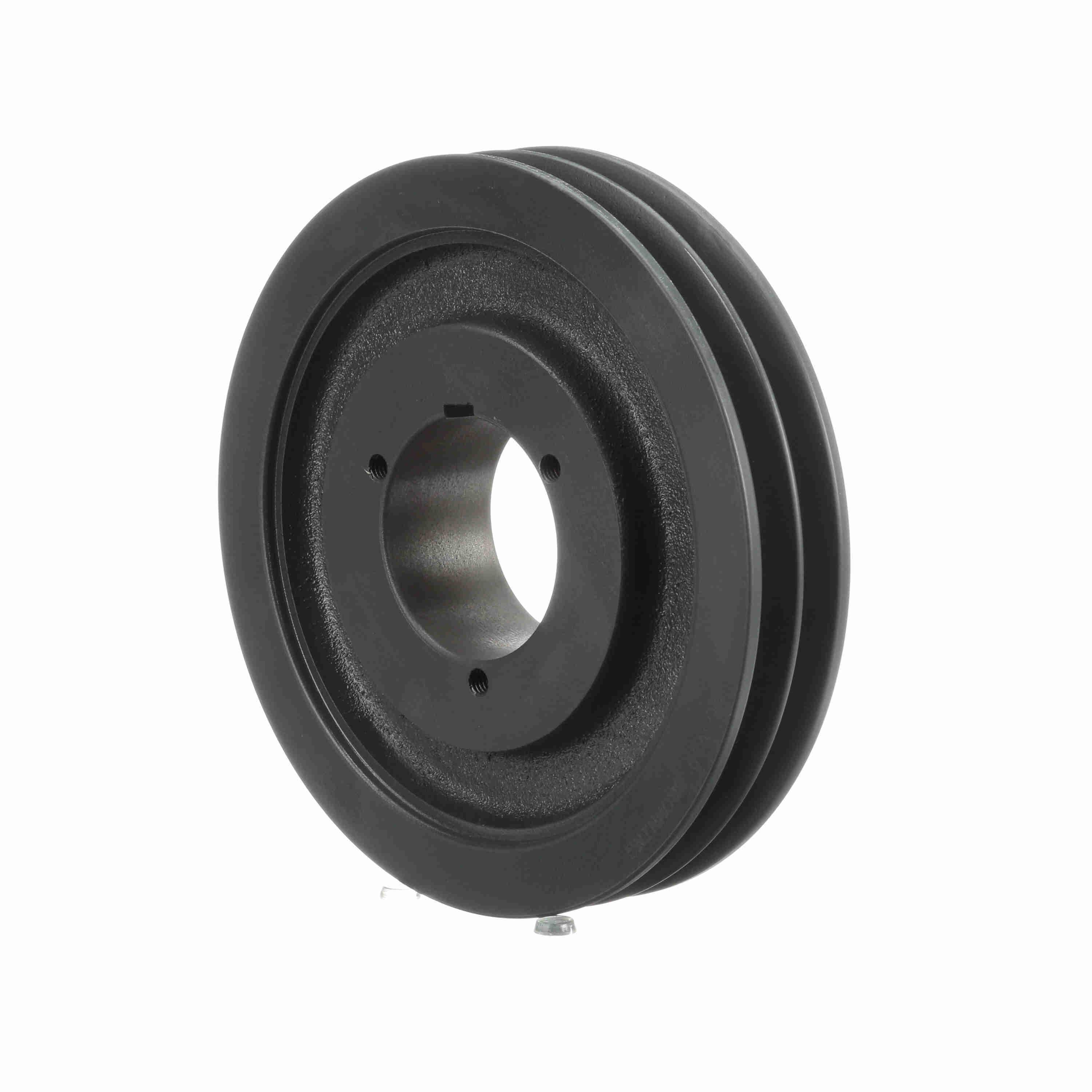

Browning® 1061753 Type 16 Web Multiple Sheave, 3/4 to 2-11/16 in Split Taper Bore, 9 in OD, 2 Grooves, 8.9 in Dia Pitch, 1-11/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289312030
-
Manufacturer Part Number1061753
-
CountryUSA
-
Face Width1-11/16 in
-
Bushing TypeQ1
-
Pitch Diameter8.9 in
-
MaterialCast Iron
-
TypeType 16 Web
-
Hub Projection7/8 in
-
Number of Grooves2
-
Outside Diameter9 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-53/64 in
-
Suitable For Use WithGripbelt® 5V Cross Section Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number2Q5V90
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
