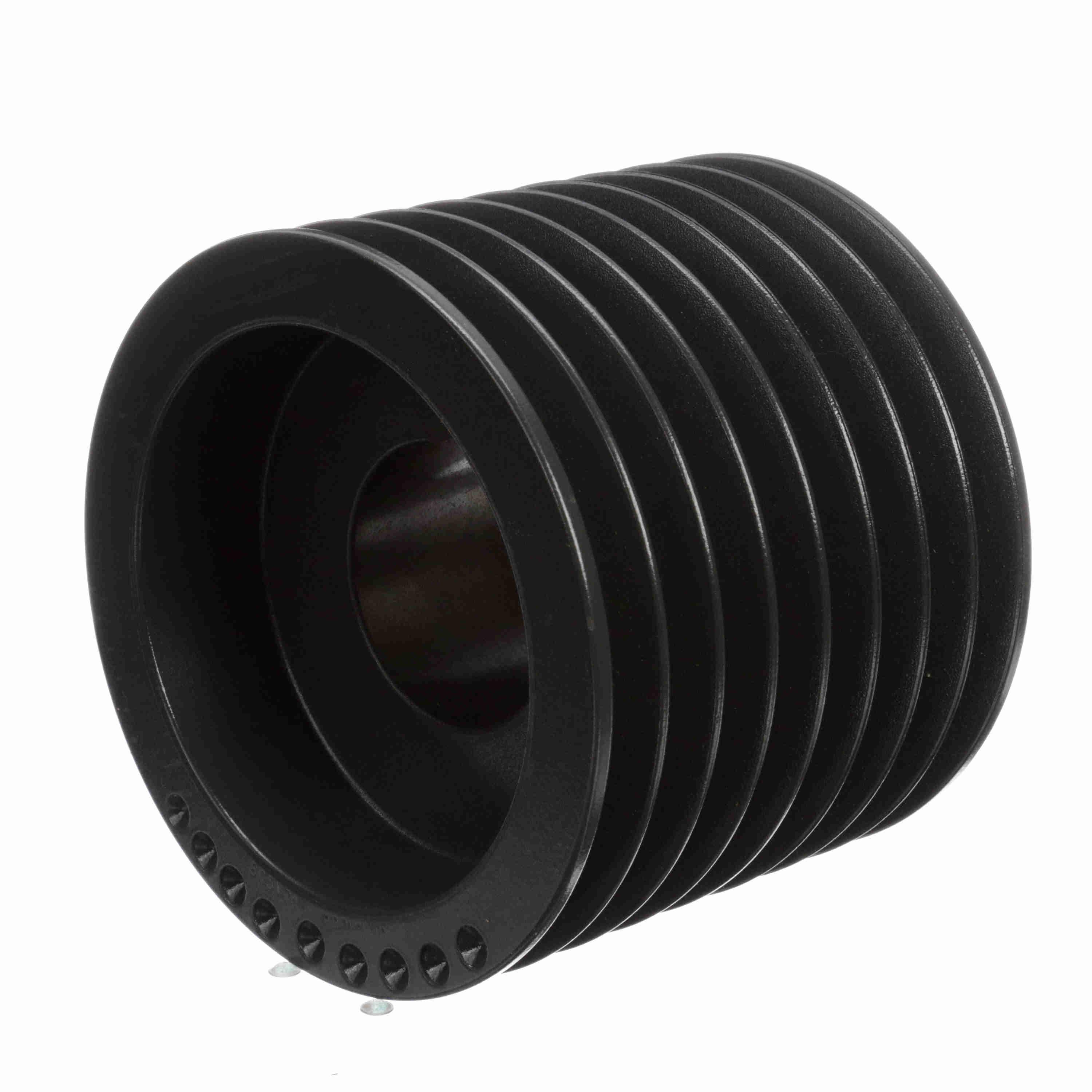

Browning® 1061548 Type 15 Web Multiple Sheave, 1 to 2-5/8 in Split Taper Bore, 7.1 in OD, 8 Grooves, 7 in Dia Pitch, 5-13/16 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289130450
-
Manufacturer Part Number1061548
-
CountryUSA
-
Face Width5-13/16 in
-
Bushing TypeQ2
-
Pitch Diameter7 in
-
MaterialCast Iron
-
TypeType 15 Web
-
Number of Grooves8
-
Outside Diameter7.1 in
-
Bore Diameter1 to 2-5/8 in
-
Bore TypeSplit Taper
-
Overall Length4-7/16 in
-
Suitable For Use WithGripBelt® 5V Cross Section V-Belt
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- All sheaves are statically balanced to assure smooth and vibration free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
-
Alternative Part Number8Q5V71
-
UNSPSC26111806
-
Package Description1/PK
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
-
Catalog
