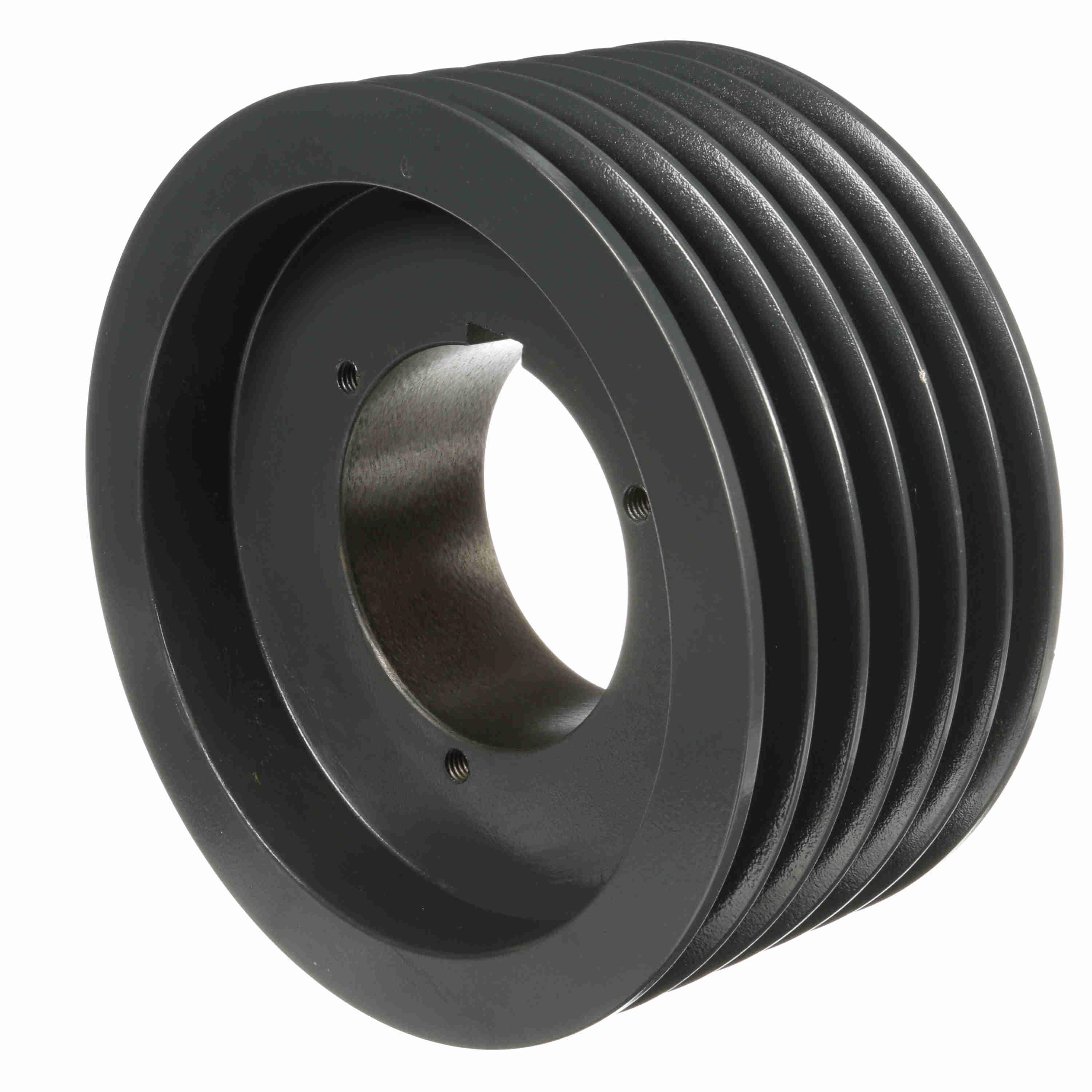

Browning® 1061860 Type 15 Web Multiple Sheave, 1-1/8 to 3-3/4 in Split Taper Bore, 9-1/4 in OD, 6 Grooves, 9.15 in Dia Pitch, 4-7/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289170708
-
Manufacturer Part Number1061860
-
CountryUSA
-
Face Width4-7/16 in
-
Bushing TypeR1
-
Pitch Diameter9.15 in
-
MaterialCast Iron
-
TypeType 15 Web
-
Hub Projection9/32 in
-
Number of Grooves6
-
Outside Diameter9-1/4 in
-
Bore Diameter1-1/8 to 3-3/4 in
-
Bore TypeSplit Taper
-
Overall Length4-7/16 in
-
Suitable For Use WithGripbelt® 5V Cross Section Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number6R5V92
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
