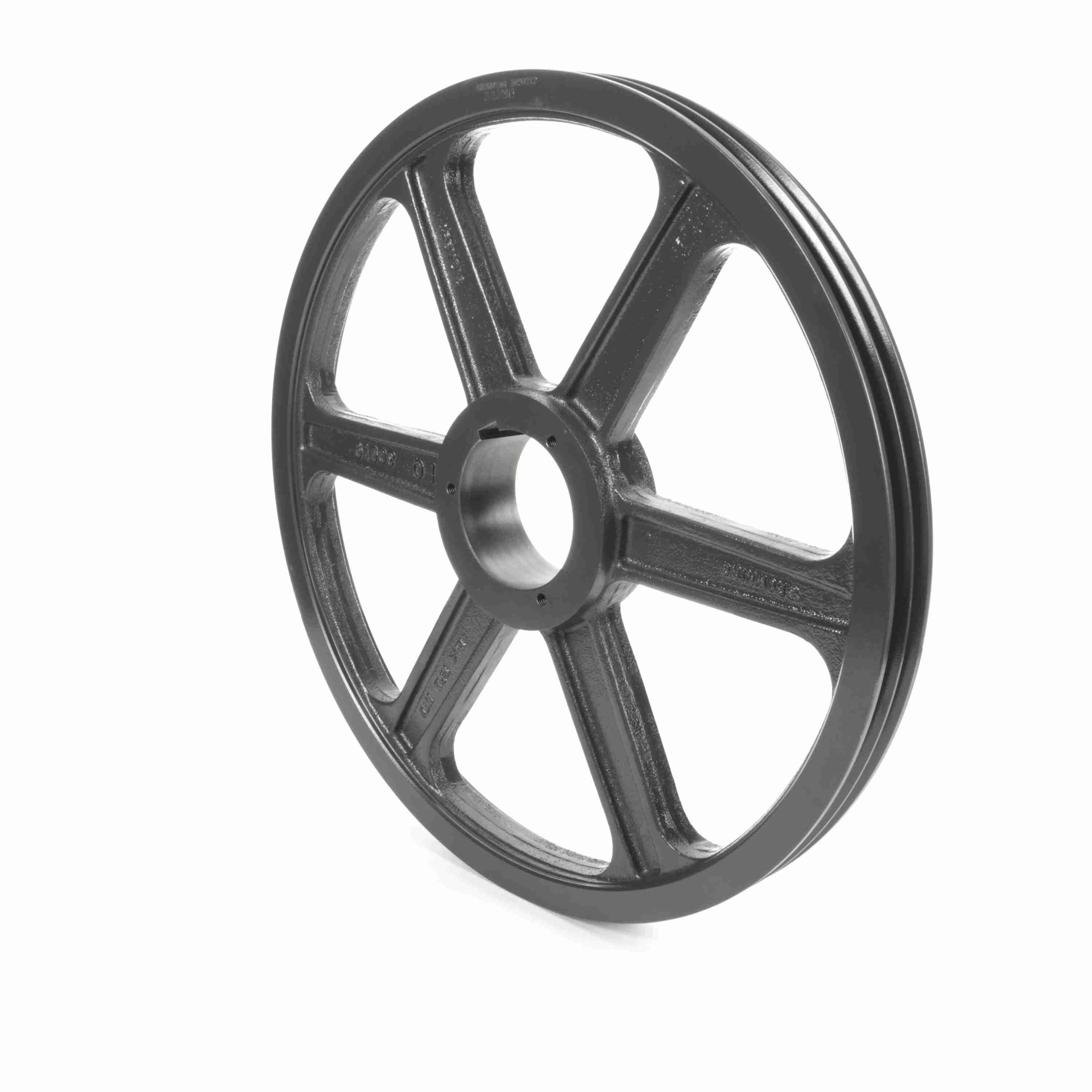

Browning® 1062538 Arm Type 16 Multiple Sheave, 1-1/8 to 3-3/4 in Split Taper Bore, 21.2 in OD, 2 Grooves, 21.1 in Dia Pitch, 1-11/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289211302
-
Manufacturer Part Number1062538
-
CountryUSA
-
Face Width1-11/16 in
-
Bushing TypeR1
-
Pitch Diameter21.1 in
-
MaterialCast Iron
-
TypeArm Type 16
-
Hub Projection1-3/32 in
-
Number of Grooves2
-
Outside Diameter21.2 in
-
Bore Diameter1-1/8 to 3-3/4 in
-
Bore TypeSplit Taper
-
Overall Length3-11/64 in
-
Suitable For Use WithGripbelt® 5V Cross Section Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
-
Alternative Part Number2R5V212
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
