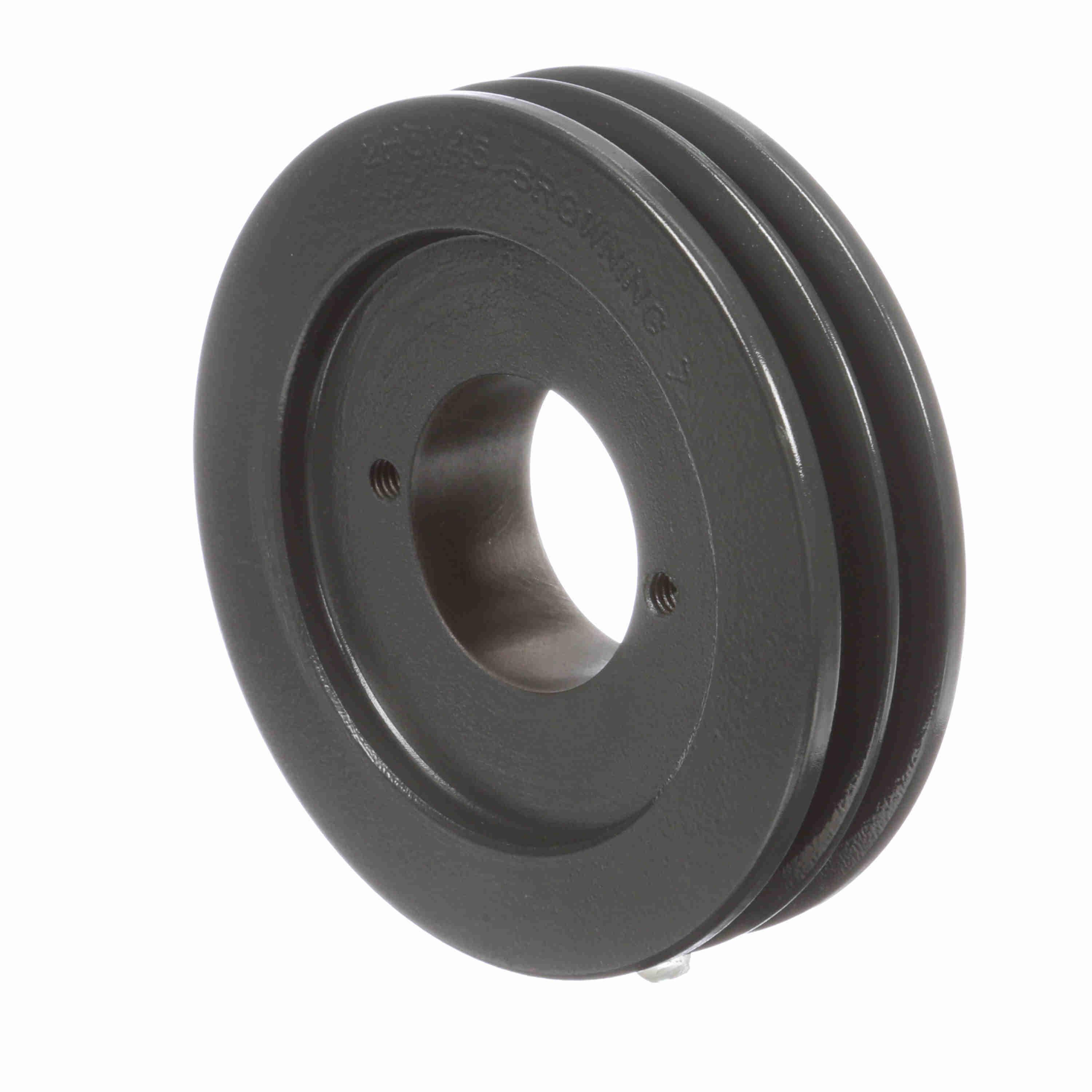

Browning® 1060011 Type H-4 Multiple Sheave, 0.38 to 1.5 in Split Taper Bore, 4-1/2 in OD, 2 Grooves, 4.45 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289309405
-
Manufacturer Part Number1060011
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeH
-
Pitch Diameter4.45 in
-
MaterialCast Iron
-
TypeType H-4
-
Number of Grooves2
-
Outside Diameter4-1/2 in
-
Bore Diameter0.38 to 1.5 in
-
Bore TypeSplit Taper
-
Overall Length1-1/2 in
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number2H3V45
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
