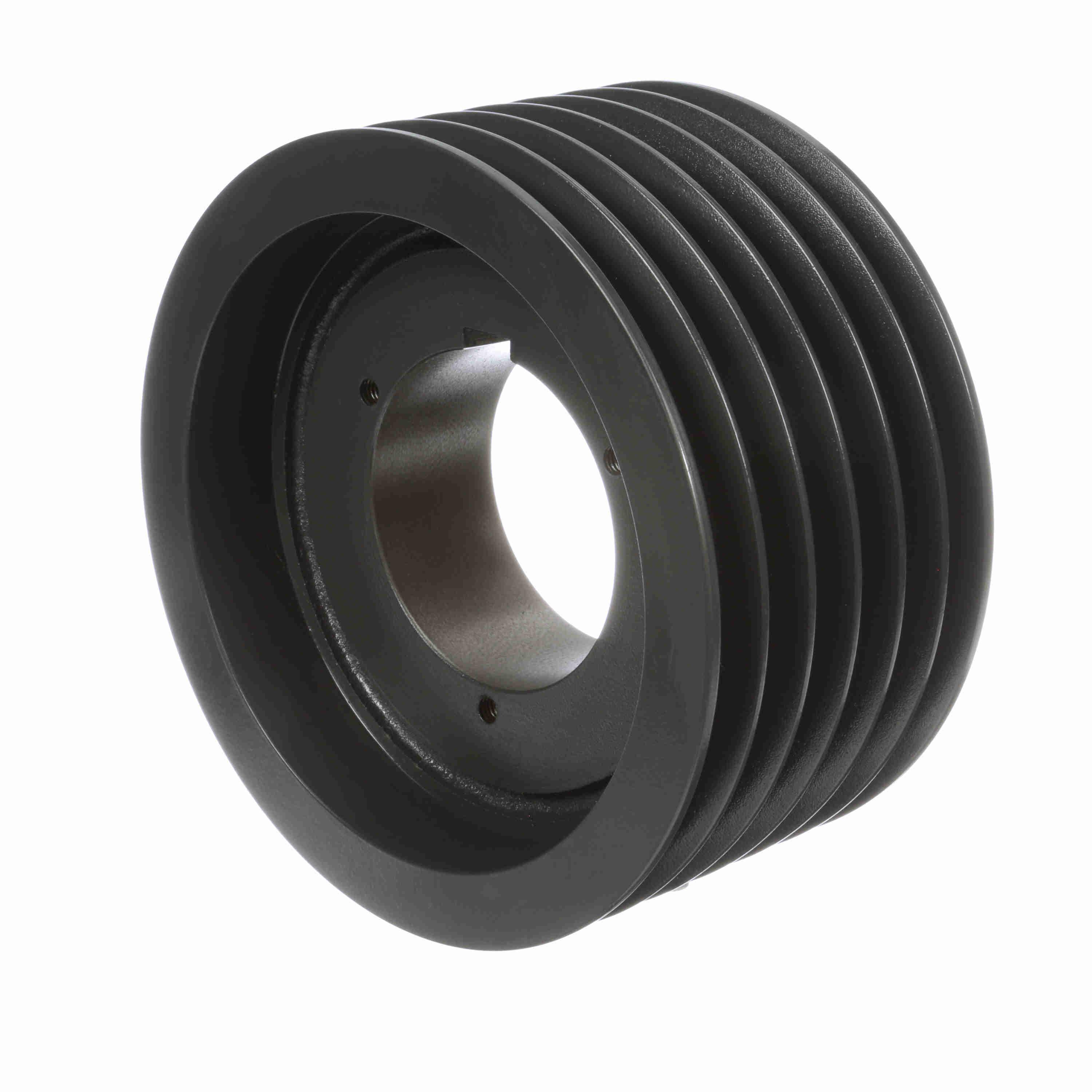

Browning® 1010917 Type 15 Web Multiple Sheave, 1.13 to 3.75 in Split Taper Bore, 8.35 in OD, 6 Grooves, 7.8 in (A)/8.3 in (B) Dia Pitch, 4-3/4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289134762
-
Manufacturer Part Number1010917
-
CountryUSA
-
Face Width4-3/4 in
-
Bushing TypeR1
-
Pitch Diameter7.8 in (A)/8.3 in (B)
-
MaterialCast Iron
-
TypeType 15 Web
-
Number of Grooves6
-
Outside Diameter8.35 in
-
Bore Diameter1.13 to 3.75 in
-
Bore TypeSplit Taper
-
Overall Length4-3/4 in
-
Suitable For Use WithGripBelt® A and B Cross Section V-Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number6B80R
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
