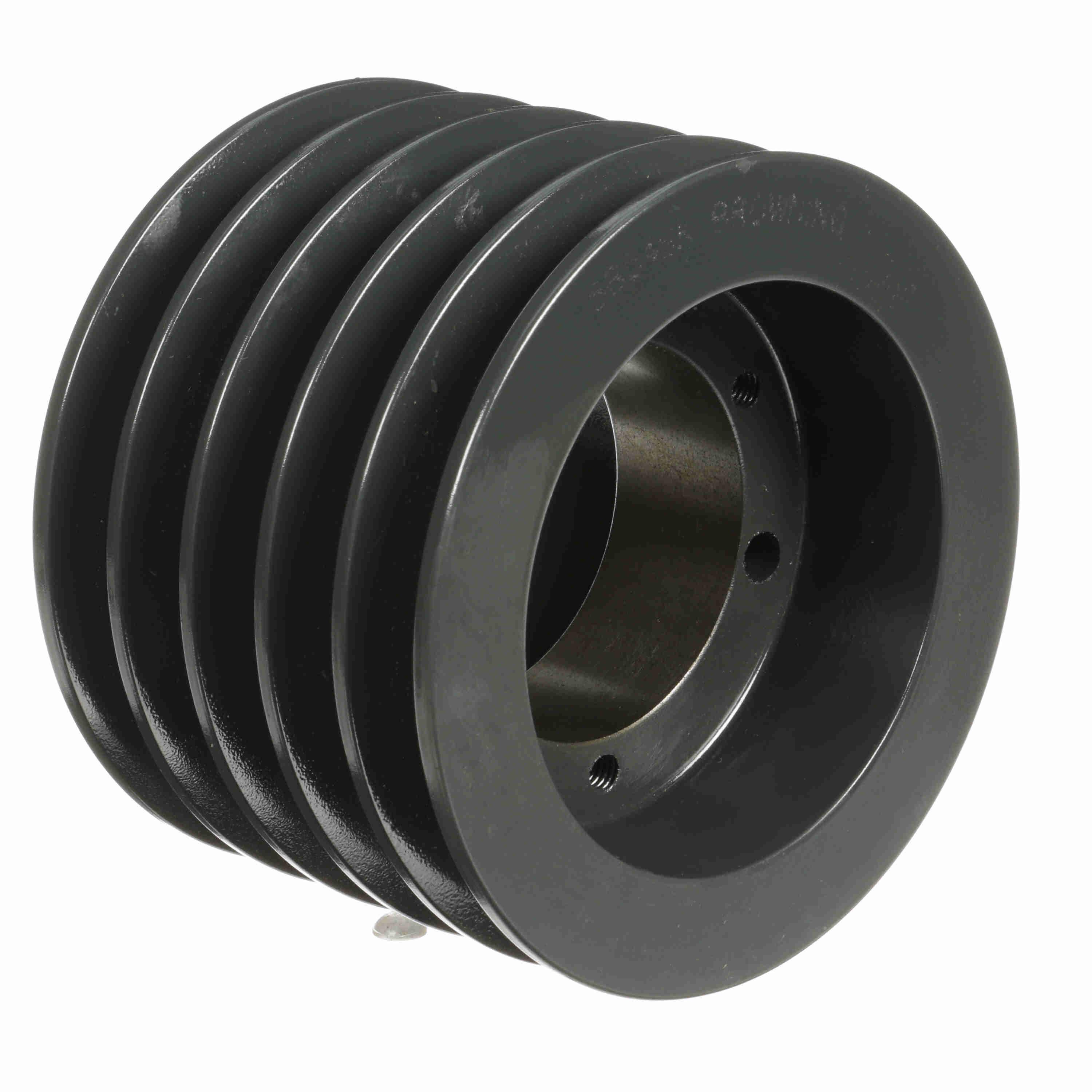

Browning® 1005123 Type E Solid Multiple Sheave, 1/2 to 2 in QD® Bore, 3-3/4 in OD, 5 Grooves, 3.2 in (A)/3.7 in (B) Dia Pitch, 4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289416738
-
Manufacturer Part Number1005123
-
CountryUSA
-
Face Width4 in
-
Bushing TypeSD
-
Pitch Diameter3.2 in (A)/3.7 in (B)
-
MaterialCast Iron
-
TypeType E Solid
-
Number of Grooves5
-
Outside Diameter3-3/4 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length3-3/4 in
-
Suitable For Use WithGripBelt® A and B Cross Section V-Belt
- Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number5B34SD
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
